Features

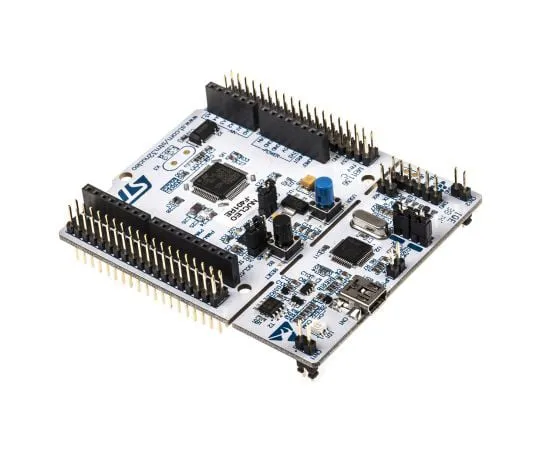

• NUCLEO-F401RE Nucleo-64 Development Board. This STM32 Nucleo-64 board provides an affordable and flexible way for ***rs to build prototypes with the STM32F401RET6 microcontroller. Arduino Uno v3 and ST morpho headers expand the functionality with a choice of Shields. The integrated ST-LINK/V2-1 debugger/programmer comes with the STM32 comprehensive software HAL library, software examples, as well as direct access to the ARM mbed on-line resources. Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based and ARM mbed. What ‘s on-board? STM32F401RET6 84MHz Cortex-M4F core microcontroller 512KB Flash memory 96KB SRAM Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory Up to 12 serial communication interfaces: USART, IrDA, I²C, SPI, USB, I²S, SDIO CRC calculation unit RTC with subsecond accuracy and hardware cal***ar 96-bit unique ID Arduino Uno v3 Shield connectivity ST morpho extension pin headers for access to all GPIO ST-LINK/V2-1 debugger/programmer with SWD connector Flexible board power supply USB OTG or FS Device with micro-AB connector 3 x LEDs: Power LED, USB communication, User LED User and Reset push buttons 32.768 KHz crystal oscillator ARM mbed Enabled (mbed.org)
