Features

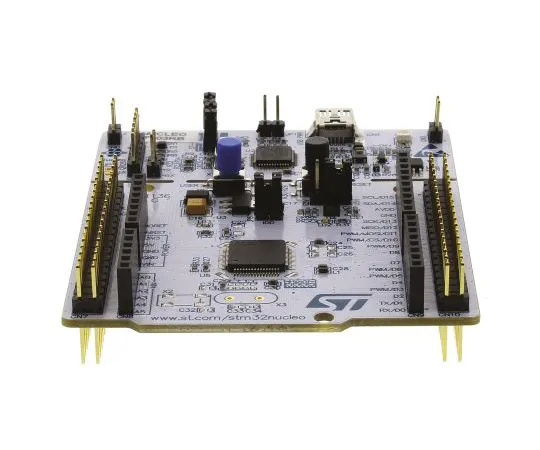

• NUCLEO-F103RB Nucleo-64 Development Board. The STMicroelectronics STM32 Nucleo Development Board, NUCLEO-F103RB are designed to work with the STM32 F1 series microcontrollers to allow you to build an embedded prototype. The development platform offers a simple solution to evaluate and develop Arm Cortex™ M3 processor STM32 F1 32-bit flash microcontrollers in the LQFP64 package. The Nucleo development board supports Arduino™ connectivity and the ST connector Morpho lets you access to all IOs on the MCU. The Nucleo boards are ARM ;sup>® ;/sup> mbed enabled and have an integrated ST-Link/V2-1 circuit debugger and programmer and this will interface with the on board microcontroller or a suitable STM32 F1 MCU in a stand-alone function.. What ‘s on-board? STM32F103RBT6 MCU, 128KB flash memory Arduino Uno Revision 3 connectivity STMicroelectronics Morpho extension pin headers Selection mode switch to *** as a standalone ST-LINK/V2-1 Power supplies: USB VBUS or external source (3.3V, 5V, 7—12V) Three LEDs: USB communication; ***r; power Two Pushbuttons: User and Reset Interfaces supported on USB: Virtual Com port; Mass storage; Debug port Integrated Development Environments (IDEs) support include IAR, Keil, GCC-based IDEs Additional Info System requirements: Windows PC (XP, Vista, 7, 8), USB type A to Mini-B USB cable such as ; 656-3939 656-3939 STM32 comprehensive software HAL library online
