Electronic/Electrical Parts and Controll Equipments

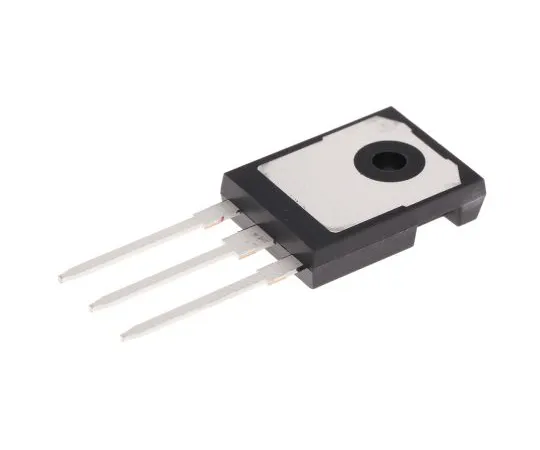

63-5116-35 ON Semi MJW18020G NPN Transistor, 30 A, 450 V, 3-Pin TO-247 MJW18020G
model:
63-5116-35
brand:
ON Semiconductor
Product Description
Product Model: 63-5116-35Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-5116-35
Product Brand: ON Semiconductor
Features
- Manufacturer Part Nos with S prefix are automotive qualified to AEC-Q101 standard.
Spec
- Quantity：1piece
- Transistor Type : NPN
- Maximum DC Collector Current : 30 A
- Maximum Collector Emitter Voltage : 450 V
- Package Type : TO-247
- Mounting Type : Through Hole
- Maximum Power Dissipation : 250 W
- Minimum DC Current Gain : 4
- Transistor Configuration : Single
- Maximum Collector Base Voltage : 1000 V dc
- Maximum Emitter Base Voltage : 9 V
- Maximum Operating Frequency : 1 MHz
- Pin Count : 3
- Number of Elements per Chip : 1
- Width : 5.3mm
- CODE No.:802-4559
