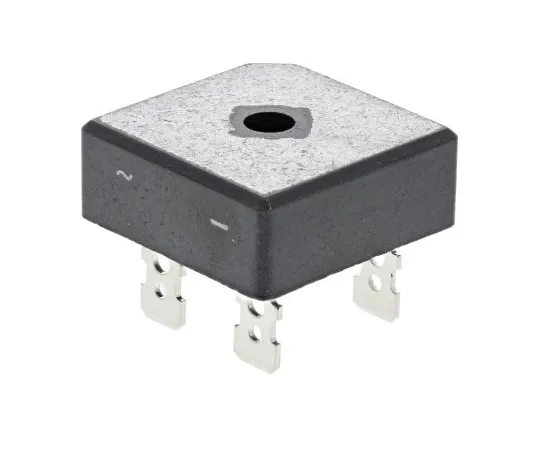

63-5116-06 ON Semiconductor GBPC2502, Bridge Rectifier, 25A 200V, 4-Pin GBPC GBPC2502
model:
63-5116-06
brand:
ON Semiconductor
Product Description
Product Model: 63-5116-06Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-5116-06
Product Brand: ON Semiconductor
Features
- UL #E258596. Bridge Rectifiers with Push-on Terminals, GBPC 25 Series, Fairchild Semiconductor. High Current 25A Glass Passivated die construction Integrally molded heat-sink provided very low thermal resistance for maximum heat dissipation Isolated voltage from case to lead over 2500V Fast-on Terminals
Spec
- Quantity：1bag(2pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 25A
- Peak Reverse Repetitive Voltage : 200V
- Mounting Type : Screw Mount
- Package Type : GBPC
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 300A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 1.1V
- Peak Reverse Current : 500µA
- Length : 29mm
- Width : 29mm
- CODE No.:802-3240
