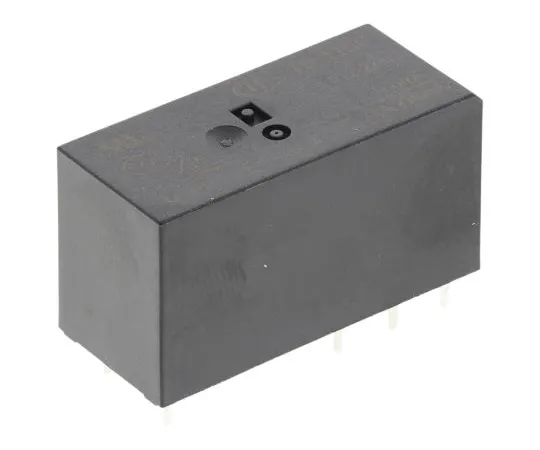

63-5113-93 RS PRO DPDT Non-Latching Relay PCB Mount, 12V dc Coil, 8A 800-4441
Product Description
Product Model: 63-5113-93Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5113-93
Product Brand: RS PRO
Features
- IEC 60335-1. UL (File no. E134517), VDE (File no.116934), CQC (File no. CQC02001001951). High Inrush Relays. High inrush: TV-5 80A (at 125Vac) Low profile: 15.7mm max height 5mm pinning 5kV dielectric strength (between coil and contacts) Surge voltage up to 10kV (between coil and contacts) Wash tight Creepage distance 10mm Conforms to VDE 0435/ 0631/ 0700
Spec
- Quantity：1piece
- Coil Voltage : 12V dc
- Coil Power : 400mW
- Coil Resistance : 360 Ω
- Isolation Coil To Contact : 5kV ac
- Contact Configuration : DPDT
- Mounting Type : PCB Mount
- Switching Current : 8A
- Terminal Type : Through Hole
- Number of Poles : 2
- Maximum Switching Voltage AC : 440V ac
- Maximum Switching Voltage DC : 300V dc
- Depth : 12.7mm
- CODE No.:800-4441
