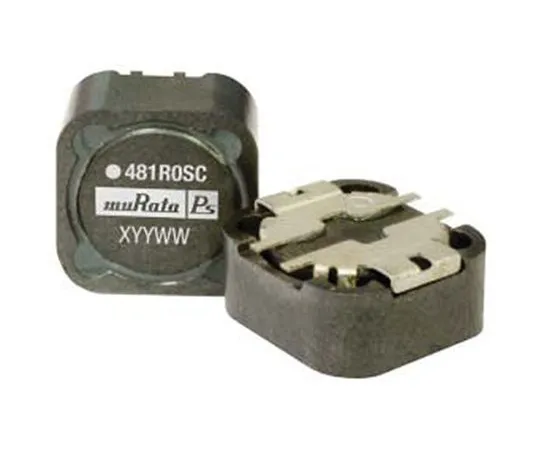

63-5113-91 Murata 4800S Series Type 48100SC Shielded Wire-wound SMD Inductor 10 μH ±20% Wire-Wound 4.5A Idc Q:32 48100SC
model:
63-5113-91
brand:
Murata Power Solutions
Product Description
Product Model: 63-5113-91Product Brand: Murata Power So […]
Contact Us
Product Details
Product Model: 63-5113-91
Product Brand: Murata Power Solutions
Features
- 4800S Series Shielded Wire Wound Inductors. 4800S series is a range of bobbin-wound, surface-mount inductors designed for *** in switching power supply, and power line filter circuits. They are suitable for any application requiring a high saturation current in a low profile package. The devices have an integral ferrite shield to reduce EMI Inductance values range from 1.0μH to 1.0mH Direct Current up to 10A Idc
Spec
- Quantity：1bag(5pieces)
- Inductance : 10 μH
- Maximum DC Current : 4.5A
- Package/Case : 48100SC
- Length : 12.2mm
- Depth : 12.2mm
- Height : 6mm
- Dimensions : 12.2 x 12.2 x 6mm
- Shielded : Yes
- Tolerance : ±20%
- Maximum DC Resistance : 28mΩ
- Series : 4800S
- Maximum Self Resonant Frequency : 20MHz
- Minimum Quality Factor : 32
- CODE No.:800-4417
