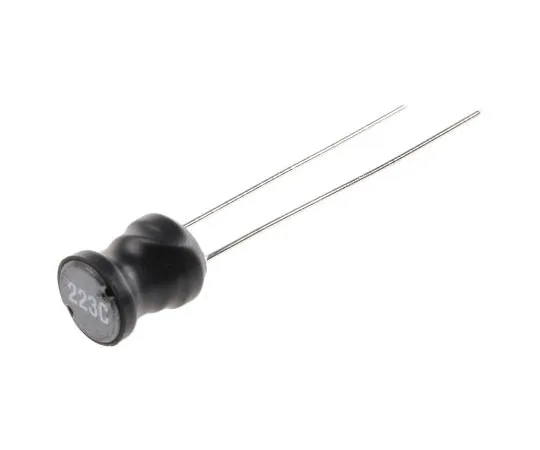

63-5113-87 Murata 22 μH ±10% Leaded Inductor, Max SRF:1kHz, 2A Idc, 70mΩ Rdc 1300R 13R223C
model:
63-5113-87
brand:
Murata Power Solutions
Product Description
Product Model: 63-5113-87Product Brand: Murata Power So […]
Contact Us
Product Details
Product Model: 63-5113-87
Product Brand: Murata Power Solutions
Features
- Murata 1300R Series Radial Lead Inductors. 1300R Series Inductors are general purpose range of inductors suitable for low to medium current applications such as power supply and other general purpose filtering designs Low DC resistance Up to 6.3A Idc 1.5μH to 68mH
Spec
- Quantity：1bag(5pieces)
- Inductance : 22 μH
- Maximum DC Current : 2A
- Maximum DC Resistance : 70mΩ
- Tolerance : ±10%
- Diameter : 9.5mm
- Height : 13.5mm
- Dimensions : 9.5 (Dia.) x 13.5mm
- Maximum Self Resonant Frequency : 1kHz
- Lead Pitch : 5mm
- Series : 1300R
- Lead Diameter : 0.65mm
- CODE No.:800-4388
