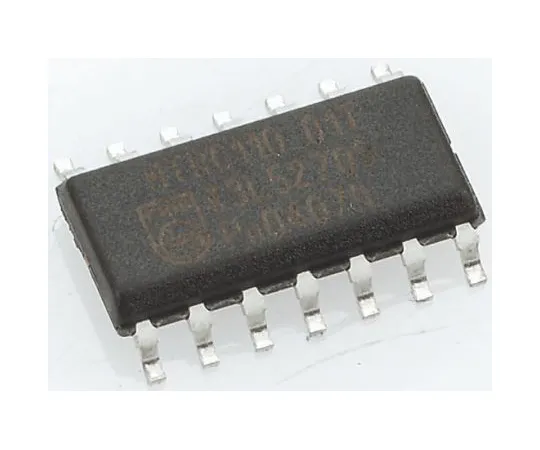

63-5113-16 DiodesZetex 74HC04S14-13, , Hex Schmitt Trigger, Push-Pull Inverter, 14-Pin SOIC 74HC04S14-13
Product Description
Product Model: 63-5113-16Product Brand: DiodesZetex Fea […]
Contact Us
Product Details
Product Model: 63-5113-16
Product Brand: DiodesZetex
Features
- 74HC Family, DiodesZetex. The 74HC family by DiodesZetex is made up of high-speed logic devices that *** CMOS circuitry. It is a series of general purpose logics ICs with low power consumption. A variety of types are available including standard logic gates, hex inverters, buffers, decoders ; demultiplexers, Schmitt trigger inverters, counters ; shift registers.. Supply Voltage Range: 2 V to 6 V Sinks or Sources 4 mA at VCC: 4.5 V CMOS Low Power Consumption ESD Protection Exceeds JESD 22 - 200V Machine Model (A115-A)- 2000V Human Body Model (A114-A) - Exceeds 1000V Charged Device Model (C101C)
Spec
- Quantity：1bag(25pieces)
- Logic Function : Inverter
- Input Type : Schmitt Trigger
- Output Type : Push-Pull
- Number of Elements per Chip : 6
- Schmitt Trigger Input : Yes
- Maximum Propagation Delay Time @ Maximum CL : 135 ns @ 50 pF
- Maximum High Level Output Current : -4mA
- Maximum Low Level Output Current : 5.2mA
- Mounting Type : Surface Mount
- Package Type : SOIC
- Pin Count : 14
- Logic Family : HC
- Dimensions : 8.74 x 3.99 x 1.48mm
- Height : 1.48mm
- Minimum Operating Supply Voltage : 2 V
- CODE No.:798-8982
