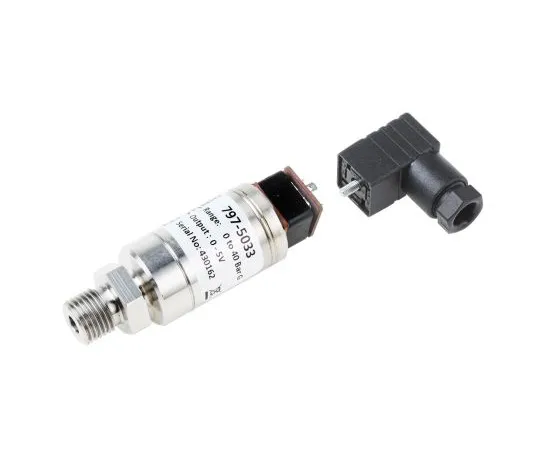

63-5111-85 RS PRO Gauge for Air, Gas, Hydraulic Fluid, Liquid, Water Pressure Sensor, 40bar Max Pressure Reading , 9 → 32 V 797-5033
Product Description
Product Model: 63-5111-85Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5111-85
Product Brand: RS PRO
Features
- RS Pressure Transducers - IND series. The IND series is suitable for a wide range of industrial applications. It has a probe which ***s a piezo-resistive ceramic sensor, giving excellent media compatibility within a stainless steel housing. Piezo-resistive thick film ceramic sensor Stainless steel body +/- 0.25% accuracy Different outputs including mV, Volts and mA Microprocessor based amplifier Operating temperature: -20 ºC to +135 ºC Temperature compensated, calibrated and supplied with a traceable serial number and calibration certificate
Spec
- Quantity：1piece
- Pressure Reading Type : Gauge
- Minimum Pressure Reading : 0bar
- Maximum Pressure Reading : 40bar
- Accuracy : ±0.25 %
- Output Type : Voltage
- Media Measured : Air, Gas, Hydraulic Fluid, Liquid, Water
- Process Connection : BSP 1/4
- Electrical Connection : DIN 43650 Connector
- Supply Voltage : 9 → 32 V dc
- Housing Material : Stainless Steel
- IP Rating : IP65
- Minimum Pressure Setting : -1bar
- CODE No.:797-5033
