Features

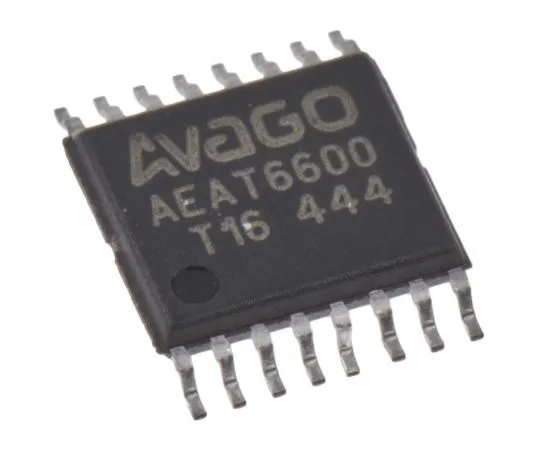

• Magnetic Encoders. The magnetic encoder IC range from Avago Technologies consists of contactless 10-bit to 16-bit programmable magnetic rotary encoders. They offer an internal voltage regulator and precise angular measurements throughout a full turn of 360°. A simple two-pole magnet is able to measure the angle by rotating it over the centre of the chip, positioned above or below the IC. The Avago magnetic rotary encoder IC is a system-on-chip (SoC), combining analog front ***, digital signal processing and integrated Hall elements in a single device. A power-down mode is also available for the magnetic encoders in order to reduce current consumption. The Avago Technologies encoder ICs offer a ***r-programmable zero position, direction and index pulse width. A variety of possible applications include 3-phase commutation for brushless DC motor, resolver and potentiometer replacement and industrial automation and robotics.. Operating temperature: -40 to 125°C Operation: 5V or 3.3V Incremental output: 8 to 1024 cycles per revolution (CPR) 3-wire or 2-wire SSI interface mode for absolute output Incremental output modes: ABI or UVW, and PWM TSSOP-16 IC package
