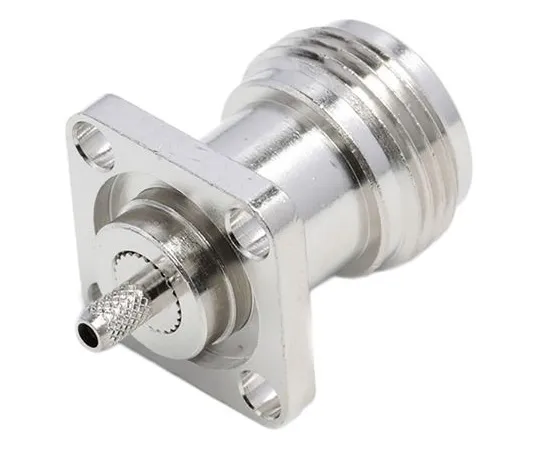

63-5108-58 RS Pro 50Ω Straight Panel Mount N Type Connector, jack, Crimp Termination, 0 → 3GHz, RG174/U 793-3588
Product Description
Product Model: 63-5108-58Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5108-58
Product Brand: RS PRO
Features
- RS Waterproof IP68 50 Ohm N Series RF Coaxial Square Flange Crimp Jack. 50 Ohm N series square flange crimp jack with waterproof IP68 inner sealing against gas and moisture ingress between insuslators, inner and outer conductors and connector body. This waterproof N series crimp jack has a nickel plated brass body, teflon insulator, rubber 'O' rings and a gold plated centre contact. The flange of this N series waterproof crimp jack is 17.5 x 17.5mm in size with 4 x 3.2mm diameter holes. The suitable RF coaxial cable for this IP68 sealed N series jack is RG174/U
Spec
- Quantity：1piece
- G***er : Female
- Cable Type : RG174/U
- Mounting Type : Panel Mount
- Termination Method : Crimp
- Body Orientation : Straight
- Impedance : 50Ω
- Operating Frequency : 0 → 3GHz
- Body Plating : Nickel
- Contact Plating : Brass
- Contact Material : Gold
- CODE No.:793-3588
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7708-55 RS PRO Red Indicator, 12 V dc, 8mm Mounting Hole Size, Solder Tab Termination, IP67 700-1738
model: 63-7708-55
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

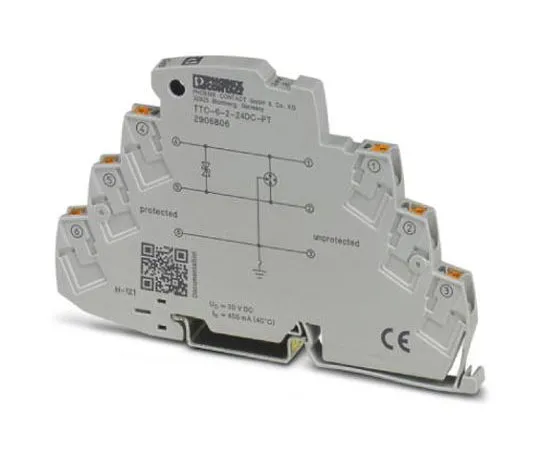

63-8442-12 Phoenix Contact TTC-6-2-24DC-PT Series 30 V dc Maximum Voltage Rating 10 (Discharge)kA Maximum Surge Current Surge 2906806
