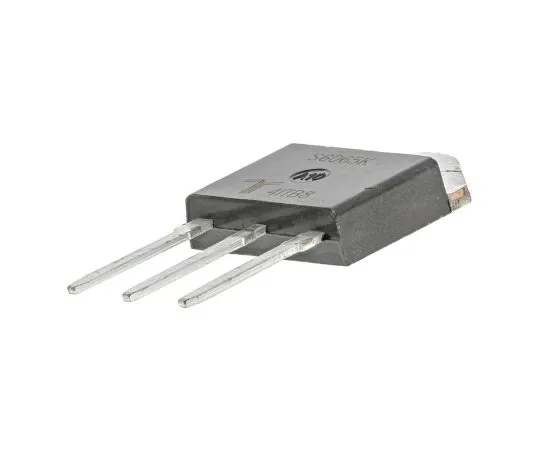

63-5108-31 Littelf***, S6065KTP, Thyristor, 600V 65A, 50mA 3-Pin, TO-218AC S6065KTP
Product Description
Product Model: 63-5108-31Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-5108-31
Product Brand: Littelfuse
Features
- Phase Control Thyristors, Littelf***. Excellent uni-directional switches for phase control applications such as heating and motor speed controls. Sensitive gate SCRs are easily triggered with microamperes of current. Standard phase control SCRs are triggered with few milliamperes of current at less than 1.5V potential.
Spec
- Quantity：1piece
- Rated Average On-State Current : 65A
- Thyristor Type : SCR
- Package Type : TO-218AC
- Repetitive Peak Reverse Voltage : 600V
- Surge Current Rating : 950A
- Mounting Type : Through Hole
- Maximum Gate Trigger Current : 50mA
- Maximum Gate Trigger Voltage : 2V
- Maximum Holding Current : 80mA
- Pin Count : 3
- Length : 16mm
- Width : 4.78mm
- Height : 21.21mm
- Dimensions : 16 x 4.78 x 21.21mm
- Minimum Operating Temperature : -40 °C
- CODE No.:793-1920
