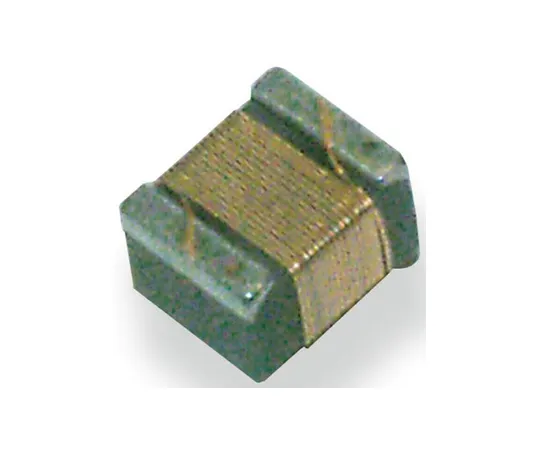

63-5107-94 Murata LQW15A Series Type 0402 Wire-wound SMD Inductor with a Ferrite Core, 100 nH ±5% Wire-Wound 120mA Idc Q:20 LQW15ANR10J00D
Product Description
Product Model: 63-5107-94Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5107-94
Product Brand: Murata
Features
- Murata 0402 LQW15AN_00D Series Wire Wound Inductors (0.051μH - 0.12μH). High quality coil inductors designed for VHF and UHF applications. High resonance frequency. Low tolerance of inductance values. Applications: High frequency circuits for wireless telecommunications equipment such as Bluetooth, GSM, W-LAN.
Spec
- Quantity：1bag(10pieces)
- Inductance : 100 nH
- Maximum DC Current : 120mA
- Package/Case : 0402
- Length : 1mm
- Depth : 0.5mm
- Height : 0.5mm
- Dimensions : 1 x 0.5 x 0.5mm
- Tolerance : ±5%
- Maximum DC Resistance : 140mΩ
- Series : LQW15A
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 1.5GHz
- Minimum Quality Factor : 20
- CODE No.:792-6498
