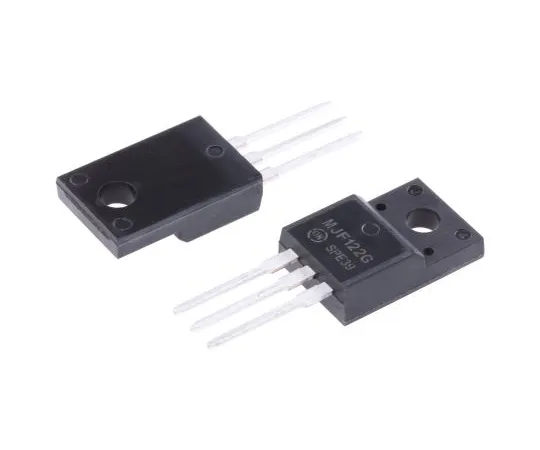

63-5107-19 ON Semi MJF122G NPN Darlington Pair, 8 A 100 V HFE:1000, 3-Pin TO-220 MJF122G
model:
63-5107-19
brand:
ON Semiconductor
Product Description
Product Model: 63-5107-19Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-5107-19
Product Brand: ON Semiconductor
Features
- Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard. NPN Darlington Transistors, ON Semiconductor
Spec
- Quantity：1bag(5pieces)
- Transistor Type : NPN
- Maximum Continuous Collector Current : 8 A
- Maximum Collector Emitter Voltage : 100 V
- Maximum Emitter Base Voltage : 5 V
- Package Type : TO-220
- Mounting Type : Through Hole
- Pin Count : 3
- Transistor Configuration : Single
- Number of Elements per Chip : 1
- Minimum DC Current Gain : 1000
- Maximum Collector Base Voltage : 100 V
- Maximum Collector Emitter Saturation Voltage : 3.5 V dc
- Maximum Collector Cut-off Current : 10µA
- Minimum Operating Temperature : -65 °C
- CODE No.:792-4694
