Features

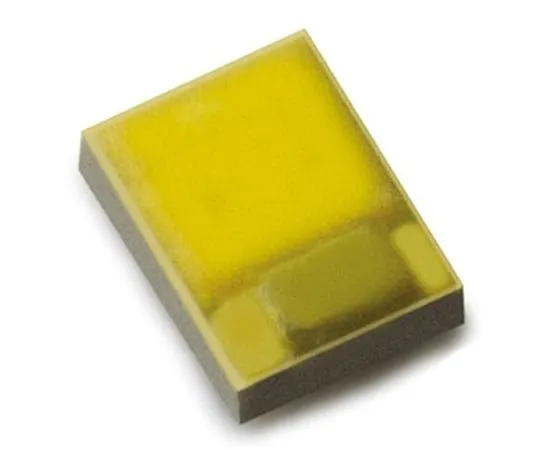

• Lumileds LUXEON Z Series LEDs. The ultra compact LUXEON Z series of high-power LEDs from Lumileds provides exceptional design flexibility for luminaire development. The 1.3x 1.7mm un-encapsulated LEDs can be ***d as building blocks to create specialised mono-colour or multi-colour LED arrays. With the ability to mount up to 250 LUXEON Z LEDs in one square inch, almost limitless configurations are possible at brilliant lumen densities. LUXEON Z LEDs are ideal for entertainment/stage lighting, indoor and outdoor architectural lighting, emergency vehicle lighting, remote phosphor applications and a wide spectrum of specialty lighting applications. Ultra compact package with a 2.2mm² footprint Un-encapsulated Tested and Binned at 500mA High drive current: 1A (InGaN) and 0.7A (AlInGaP) Up to 150°C max T ;sub>j ;/sub> Industry ‘s leading Lm/mm² for high flux density solution Superior colour mixing and beam control through choice of optics Enables customisable light sources: linear, rectangular, circular, etc. and therefore smaller/unique luminaire designs
