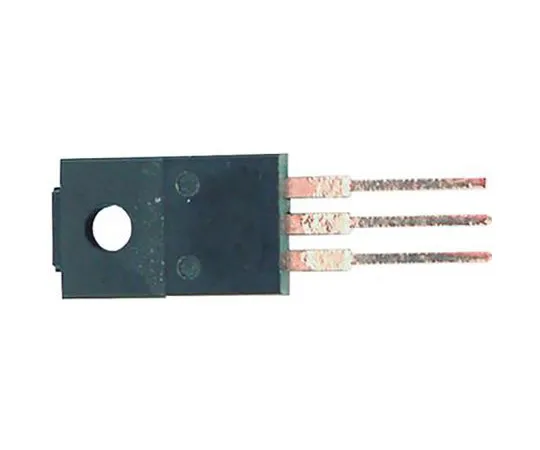

63-5106-75 STF45N10F7 N-Channel MOSFET, 110 A, 100 V STripFET H7, 3-Pin TO-220FP STMicroelectronics STF45N10F7
model:
63-5106-75
brand:
STMicroelectronics
Product Description
Product Model: 63-5106-75Product Brand: STMicroelectron […]
Contact Us
Product Details
Product Model: 63-5106-75
Product Brand: STMicroelectronics
Features
- N-Channel STripFET™ H7 Series, STMicroelectronics. STripFET™ MOSFETs with a wide breakdown voltage range offer ultra-low gate charge and low on-resistance.
Spec
- Quantity：1bag(5pieces)
- Channel Type : N
- Maximum Continuous Drain Current : 110 A
- Maximum Drain Source Voltage : 100 V
- Maximum Drain Source Resistance : 7 mΩ
- Maximum Gate Threshold Voltage : 4V
- Minimum Gate Threshold Voltage : 2V
- Maximum Gate Source Voltage : -20 V, +20 V
- Package Type : TO-220FP
- Mounting Type : Through Hole
- Pin Count : 3
- Channel Mode : Enhancement
- Category : Power MOSFET
- Maximum Power Dissipation : 30 W
- Typical Gate Charge @ Vgs : 72 nC @ 10 V
- CODE No.:791-9320
