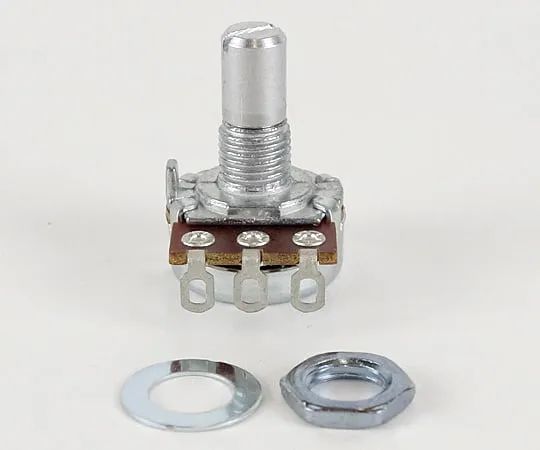

63-3109-94 Single-coupled volume A characteristic 1 kohm R1610N-QB1-A102
Electronic/Electrical Parts and Controll Equipments

63-3109-94 Single-coupled volume A characteristic 1 kohm R1610N-QB1-A102

model: 63-3109-94
brand: Linkman

Product Description

Product Model: 63-3109-94Product Brand: Linkman Feature […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3109-94
Product Brand: Linkman

Features

  • For the A characteristic, the resistance of the tap changes exponentially with respect to the rotation angle, and the B characteristic changes linearly.
  • For volume adjustment (volume control), A type is usually ***d. This is not to say that the B characteristic cannot be ***d electrically, but it can be changed so that the sound suddenly increases from a certain position when the knob is turned. In addition, there are several types such as C characteristic in the classification of the relationship between the rotation angle and the resistance change, but the demand is mostly A and B.
  • Resistance Variation Characteristics: A
  • Resistance Value: 1 kΩ
  • Resistance Tolerance: ±20%
  • Rated Power: 0.06 W
  • External Shape: φ16 mm
  • Shaft (φD×L): φ6×15 mm
  • Shaft: Groove Shape
  • Mechanical Rotation Angle:
  • Operating Temperature Range:
  • Mounting: Panel
  • Rotation Life:
  • Application: General Purpose, Volume Adjustment (Stereo)
  • Accessories: Screw, Washer
  • Notes:
