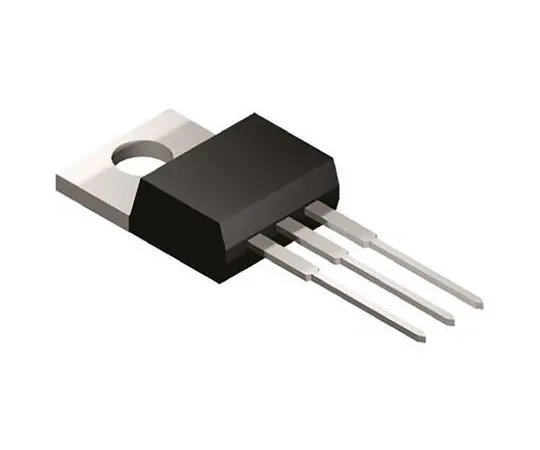

63-5105-93 ON Semi BD809G NPN Transistor, 10 A, 80 V, 3-Pin TO-220 BD809G
model:
63-5105-93
brand:
ON Semiconductor
Product Description
Product Model: 63-5105-93Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-5105-93
Product Brand: ON Semiconductor
Features
- Manufacturer Part Nos with NSV prefix are automotive qualified to AEC-Q101 standard. NPN Power Transistors, ON Semiconductor
Spec
- Quantity：1bag(5pieces)
- Transistor Type : NPN
- Maximum DC Collector Current : 10 A
- Maximum Collector Emitter Voltage : 80 V
- Package Type : TO-220
- Mounting Type : Through Hole
- Maximum Power Dissipation : 90 W
- Minimum DC Current Gain : 15
- Transistor Configuration : Single
- Maximum Collector Base Voltage : 80 V dc
- Maximum Emitter Base Voltage : 5 V
- Maximum Operating Frequency : 1 MHz
- Pin Count : 3
- Number of Elements per Chip : 1
- Dimensions : 10.28 x 4.82 x 15.75mm
- CODE No.:790-5296
