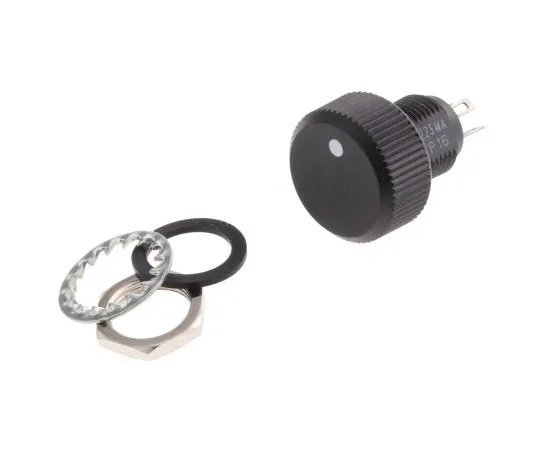

63-5105-67 Vishay 1 Gang Rotary Cermet Potentiometer with a 16 mm Dia. Shaft, 22kΩ, ±20%, 1W, Linear P16NP223MAB15 P16NP223MAB15
Product Description
Product Model: 63-5105-67Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-5105-67
Product Brand: Vishay
Features
- Nut, lock washer and sealing ring. 16mm P16 Series. Unique design with integrated plastic (NP) or metal (NM) knob Mounts directly onto panel Minimum clearance required behind panel Hermetically sealed and panel sealed Tolerance ±20% Power rating 1W
Spec
- Quantity：1piece
- Potentiometer Type : Rotary
- Maximum Resistance : 22kΩ
- Number of Gangs : 1
- Number of Turns : 1
- Power Rating : 1W
- Electrical Taper : Linear
- Element Material : Cermet
- Mounting Type : Panel Mount
- Termination Style : Solder Lug
- Shaft Length : 8.8mm
- Shaft Diameter : 16 mm
- Tolerance : ±20%
- Series : P16
- CODE No.:790-4417
