Features

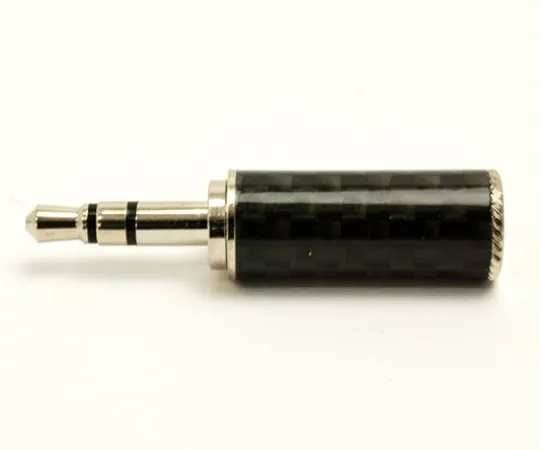

• 3.5 mm diameter stereo plug. The body part can be removed, so please remove and solder.
• Connector Type: 3.5 mm Plug
• Stereo/Mono: Stereo
• Number of Poles: 3 Poles
• Terminal Processing: Nickel Plating
• Material: Carbon Fiber (Shell)
• Notes: Solder Connection
• Insulation and Non-Insulation
• Panel-mounted RCA pin jacks, φ3.5 jacks, etc. are divided into "Insulation Type" and "Non-Insulation Type." What is insulated or uninsulated? When a connector is attached to a panel, it means whether the GND terminal of the connector makes contact with the panel.
• In the case of the insulated type, the GND terminal of the connector is not connected (contacted) with the panel.
• The non-insulated type is electrically connected when the panel is metallic.
• Use an insulated connector when you do not want to create a GND (ground) loop.
• * A GND loop is a loop (circle) of wiring. In particular, a loop of a GND wire is called a "GND loop." When the magnetic flux crosses the loop, a current flows through the GND line, creating a voltage that creates noise. In such cases, breaking the loop prevents noise ca***d by the interlocking of magnetic flux.
