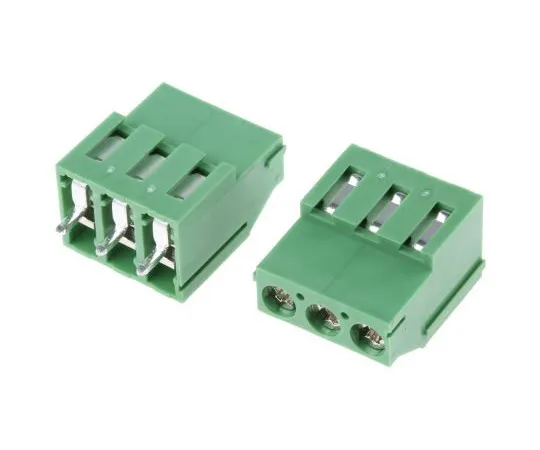

63-5105-01 RS, 3 Way PCB Terminal Strip 790-1155
Product Description
Product Model: 63-5105-01Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5105-01
Product Brand: RS PRO
Features
- 5.08 mm Pitch PCB Terminal Block. A professional range of PCB Terminal Blocks with 5.08 mm pitch. Series MB612-508 PCB Terminal Blocks have rectangular Tin plated PC tails which are 0.9x0.5 mm by 3.5 mm long, are for 14-26 AWG wire and have cross head screws. Series MB312-508 PCB Terminal Blocks have rectangular Tin plated PC tails which are 1.0x0.8 mm by 3.5 mm long, are for 12-26 AWG wire and have slotted head screws. Series MB422-508 PCB Terminal Blocks have rectangular Tin plated PC tails which are 1.0x0.8 mm by 3.5 mm long, are for 12-24 AWG wire and have posidrive type head screws. Various positions available.
Spec
- Quantity：1bag(5pieces)
- Number of Contacts : 3
- Pitch : 5.08mm
- Number of Rows : 1
- Mounting Type : Through Hole
- G***er : Female
- Termination Method : Screw
- Type : PCB Terminal Block
- Current Rating : 25A
- Body Orientation : Straight
- Colour : Green
- Voltage Rating : 300 V
- Material : Polyamide
- Width : 11.2mm
- CODE No.:790-1155
