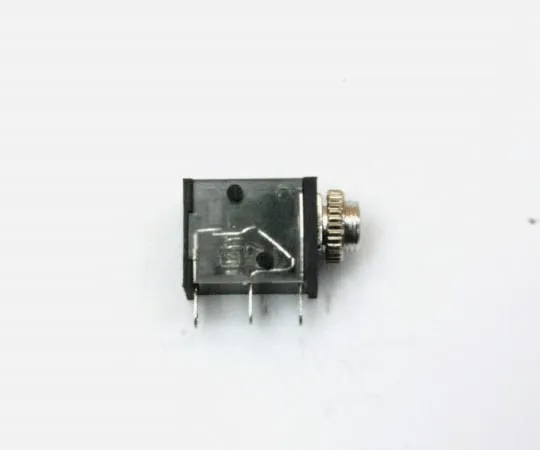

63-3109-02 3.5 phi mono Jack with Switch for both Board and panel HLA-3542D1I
Product Description
Product Model: 63-3109-02Product Brand: Linkman Feature […]
Contact Us
Product Details
Product Model: 63-3109-02
Product Brand: Linkman
Features
- Connector Type: 3.5 mm Jack
- Stereo/Mono: Mono
- Number of Poles: 2 Poles
- Terminal Processing: Tin Plated
- Material: Plastic
- Notes: Panel mounted, non-insulated, with switch
- High back type.
- Insulation and Non-Insulation
- Panel mounting type RCA pin jacks, φ3.5 jacks, terminals, etc. are available in "Insulation Type" and "Non-Insulation Type."
- When this jack/terminal is attached to a metal panel, it indicates whether or not the GND terminal side is conductive to the panel.
- In the case of the insulated type, the GND terminal of the jack/terminal is not electrically conductive to the metal panel.
- In the non-insulated type, the metal panel and GND terminal are electrically connected.
- Use insulated connectors when you do not want to create a GND (ground) loop.
- Also, the speaker output may not be GND on the -side, and since a large current flows, it is recomm***ed to *** an insulation type that does not drop on the panel.
- Generally, the input terminal of the RCA is not shared with the chassis (panel) GND.
- * A GND loop is a loop (circle) of wiring. In particular, a loop of a GND wire is called a "GND loop."
- If you experience symptoms such as noise contamination or hum, *** an insulated mold to cut the GND loop.
Spec
