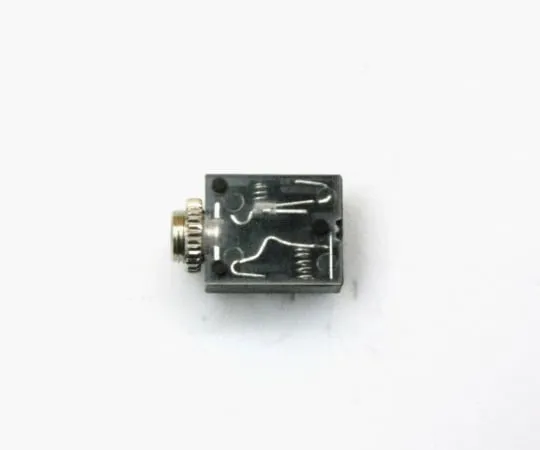

63-3109-01 3.5 phi headphone Jack with both Board and panel Switch HLA-3531D2A
Product Description
Product Model: 63-3109-01Product Brand: Linkman Feature […]
Contact Us
Product Details
Product Model: 63-3109-01
Product Brand: Linkman
Features
- Connector Type: 3.5 mm Jack
- Stereo/Mono: Stereo
- Number of Poles: 3 Poles
- Terminal Processing: Tin Plated
- Material: Plastic
- Notes: Panel Mounted, Non-Insulated, With Switch
- Insulated and Non-Insulated
- Panel Mounted RCA Pin Jack, φ3.5 Jack, Terminal, etc. are available in "Insulated" and "Non-Insulated" types.
- When this jack/terminal is attached to a metal panel, it indicates whether or not the GND terminal side is conductive to the panel.
- In the case of the insulated type, the GND terminal of the jack/terminal is not electrically conductive to the metal panel.
- In the non-insulated type, the metal panel and GND terminal are electrically connected.
- Use insulated connectors when you do not want to create a GND (ground) loop.
- Also, the speaker output may not be GND on the -side, and since a large current flows, it is recomm***ed to *** an insulation type that does not drop on the panel.
- Generally, the input terminal of the RCA is not shared with the chassis (panel) GND.
- * A GND loop is a loop (circle) of wiring. In particular, a loop of a GND wire is called a "GND loop."
- If you experience symptoms such as noise contamination or hum, *** an insulated mold to cut the GND loop.
Spec
