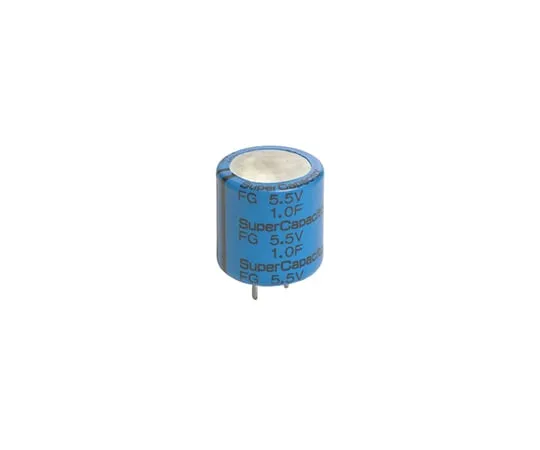

63-5104-34 KEMET 1F Supercapacitor EDLC -20 → +80% Tolerance Supercap FG Series 5.5V dc Through Hole FG0H105ZF
Product Description
Product Model: 63-5104-34Product Brand: KEMET Features […]
Contact Us
Product Details
Product Model: 63-5104-34
Product Brand: KEMET
Features
- Supercap FG. KEMET FG series super capacitors are designed for high energy storage applications.supercapacitors can be ***d like a secondary battery when applied in a DC circuit. These supercapacitors are suited for *** in low voltage DC hold-up applications such as embedded microprocessor systems with flash memory. Features. Rectangular case Wide range of temperature from −25°C to +70°C Maintenance free Highly reliable against liquid leakage Leads can be transverse mounted
Spec
- Quantity：1piece
- Capacitance : 1F
- Voltage : 5.5V dc
- Mounting Type : Through Hole
- Minimum Operating Temperature : -25°C
- Maximum Operating Temperature : +70°C
- Diameter : 16.5mm
- Dimensions : 16.5 (Dia.) x 19mm
- Lead Pitch : 5.08mm
- Equivalent Series Resistance : 65Ω
- Series : Supercap FG
- Tolerance : -20 → +80%
- Terminal Type : Radial
- CODE No.:789-7987
