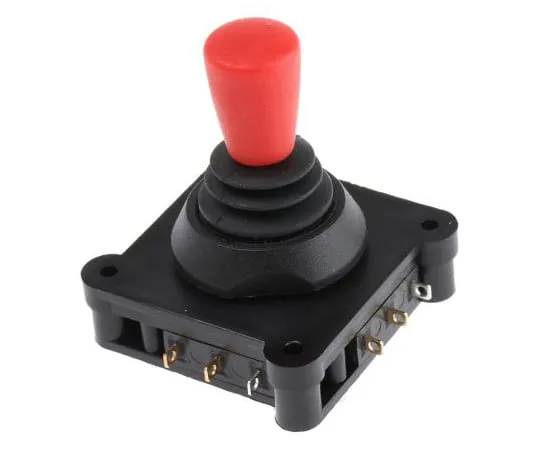

63-5104-18 IP67 Joystick, 1, 2 axes, 6 A @ 250 V ac Solder 250V ac, -20 → +50°C 1D1-5F-15-451
Product Description
Product Model: 63-5104-18Product Brand: APEM Features P […]
Contact Us
Product Details
Product Model: 63-5104-18
Product Brand: APEM
Features
- Panel Mounted, V4 Switch Joystick. Joystick switches for harsh enviroments such as vehicle lifting platforms and materials handling equipment. Available with 6A or10A switches. An IP67 10A variant is offered for total dust and water ingress protection; see stock no ; 7897325 7897325. Versatile 4 way single/double pole joysticks Supplied with an open square gate Spring to centre on release operation Industry standard V4 microswitches Lever travel ± 12° from centre Ø22mm bush mounted Gold flash terminals for reliable switching Supplied limiting plates define operating axis
Spec
- Quantity：1piece
- Number of Axes : 1, 2
- IP Rating : IP67
- Handle Type : Conical
- Contact Voltage Rating : 250V ac
- Contact Current Rating : 6 A @ 250 V ac
- Joystick Travel : 24 (From Center) °
- Terminal Type : Solder
- Mechanical Life : 5000000Operations
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +50°C
- Operating Temperature Range : -20 → +50°C
- CODE No.:789-7334
