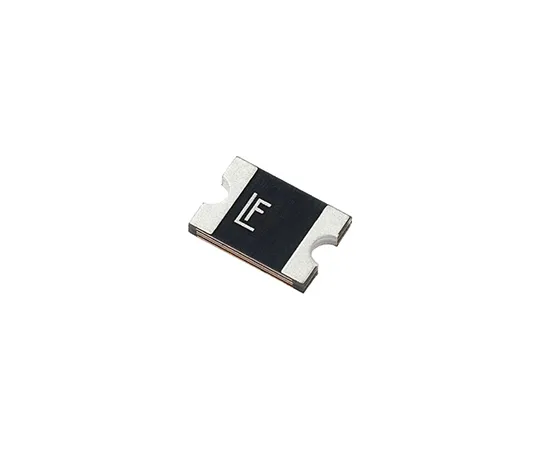

63-5101-12 Littelf*** 1.1A Surface Mount Resettable F***, 33V dc 2920L100PR
Product Description
Product Model: 63-5101-12Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-5101-12
Product Brand: Littelfuse
Features
- Littelf*** POLY-FUSE Resettable PTCs - 2920L Series. The Littelf*** 2920L series PTC provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.
Spec
- Quantity：1bag(5pieces)
- Trip Current : 2.2A
- Voltage Rating : 33V dc
- Time to Trip : 0.5s
- Hold Current : 1.1A
- Maximum Current : 40 A
- Length : 7.98mm
- Height : 1mm
- Width : 5.44mm
- Terminal Material : Tin Plated Copper
- Minimum Resistance : 0.12Ω
- Maximum Resistance : 410mΩ
- Power Dissipation : 1.5W
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +85°C
- Operating Temperature Range : -40 → +85 °C
- CODE No.:787-4205
