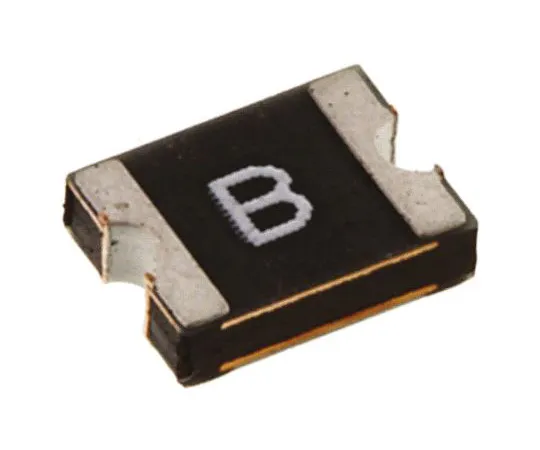

63-5101-07 Littelf*** 0.1A Surface Mount Resettable F***, 30V dc 1210L010WR
Product Description
Product Model: 63-5101-07Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-5101-07
Product Brand: Littelfuse
Features
- Littelf*** POLY-FUSE Resettable PTCs - 1210L Series. The Littelf*** 1210L series PTC provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.
Spec
- Quantity：1bag(10pieces)
- Voltage Rating : 30V dc
- Time to Trip : 1.5s
- Hold Current : 0.1A
- Maximum Current : 10 A
- Length : 3.43mm
- Height : 1.25mm
- Width : 2.8mm
- Terminal Material : Tin Plated Copper
- Minimum Resistance : 1.6Ω
- Maximum Resistance : 15Ω
- Power Dissipation : 0.6W
- Minimum Operating Temperature : -40°C
- Package Size : 1210
- Dimensions : 3.43 x 2.8 x 1.25mm
- CODE No.:787-4189
