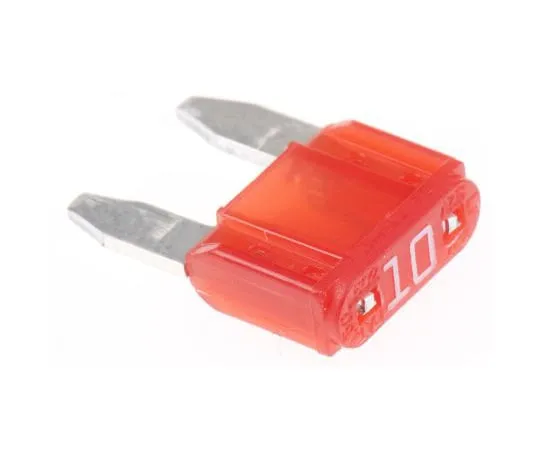

63-5100-84 Littelf*** 10A Red Car F***, 32V dc 0297010.WXNV
Product Description
Product Model: 63-5100-84Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-5100-84
Product Brand: Littelfuse
Features
- 'MINIFUSE' 297 Series. The MINI f*** series from Littelf*** is the new standard for vehicle circuit protection. The series miniature design utilizes less space and has the ability to cope with high temperatures, even in adverse environments. Features: Temperature Range: -40˚C to +125˚C Miniature f***s to SAE J2 077 Can also be ***d for low voltage applications Body thickness 3.81mm 32Vdc
Spec
- Quantity：1bag(10pieces)
- Current Rating : 10A
- F*** Type : Blade
- Blade Size : Mini
- Voltage Rating : 32V dc
- Colour : Red
- Length : 10.9mm
- Width : 3.8mm
- Height : 8.8mm
- Body Material : PA 66
- F*** Speed : F
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +125°C
- Operating Temperature Range : -40 → +125 °C
- CODE No.:787-4104
