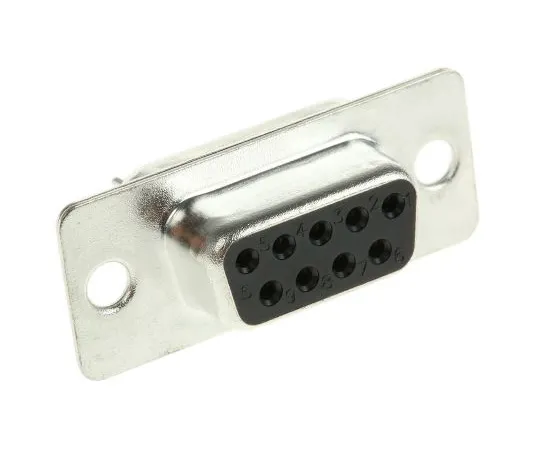

63-5100-77 MH Connectors MHDD Series, 9 Way PCB D-sub Connector Socket, 2.77mm Pitch MHDD9-F-T-B-S
model:
63-5100-77
brand:
MH Connectors
Product Description
Product Model: 63-5100-77Product Brand: MH Connectors F […]
Contact Us
Product Details
Product Model: 63-5100-77
Product Brand: MH Connectors
Features
- D-Sub PCB Straight Connectors MHDD Series. A range of D-Sub MHDD Series and MHDD-M Series Straight PCB Mount Plug and Socket connectors with stamped steel Tin plated shells with Ø3 mm holes. The Insulator material for these MHDD Series and MHDD-M Series Straight PCB Mount Plug and Socket connectors is UL 94V-0 glass filled Polyester. The Copper alloy, selective Gold over Nickel plated, terminals of these Straight PCB Mount Plug and Socket connectors are manufactured as follows: MHDD Series: ; 787-3915 787-3915 stamped and formed pin 9 way ; 787-3919 787-3919 stamped and formed receptacle 9 way ; 787-3928 787-3928 stamped and formed pin 15 way ; 787-3921 787-3921 stamped and formed receptacle 15 way ; 787-3925 787-3925 stamped and formed pin 25 way ; 787-3934 787-3934 stamped and formed receptacle 25 way MHDD-M Series: ; 787-3959 787-3959 machined pin 9 way ; 787-3953 787-3953 machined receptacle 9 way ; 787-3962 787-3962 machined pin 15 way ; 787-3965 787-3965 machined receptacle 15 way ; 787-3969 787-3969 machined pin 25 way ; 787-3978 787-3978 machined receptacle 25 way
Spec
- Quantity：1piece
- Number of Contacts : 9
- G***er : Female
- Body Orientation : Straight
- Mounting Type : PCB Mount
- Pitch : 2.77mm
- Housing Material : Steel
- Length : 30.81mm
- Width : 12.55mm
- Depth : 11.16mm
- Dimensions : 30.81 x 12.55 x 11.16mm
- Series : MHDD
- CODE No.:787-3919
