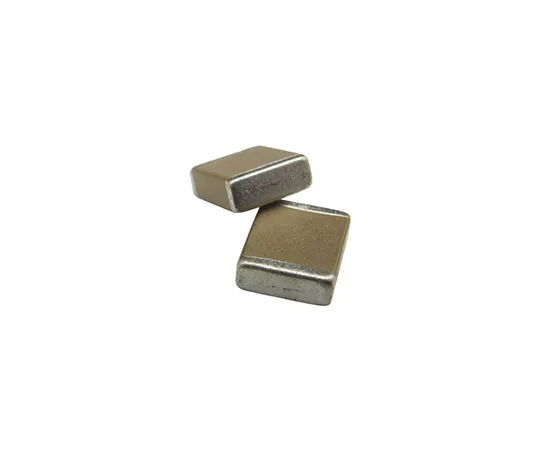

63-5099-35 Murata LQM31P_00 Series 4.7 μH ±20% Ferrite Multilayer SMD Inductor, 1206 (3216M) Case, SRF: 25MHz 700mA dc 375mΩ Rdc LQM31PN4R7M00L
Product Description
Product Model: 63-5099-35Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5099-35
Product Brand: Murata
Features
- Murata 1206 LQM31P_00 Series Magnetically Shielded Multilayer Chip Chokes. Wide inductance range, magnetically shielded Small size (3.2x1.6x1.8mm) for tight pitch mounting Low DC resistance and large current
Spec
- Quantity：1bag(10pieces)
- Series : LQM31P_00
- Inductance : 4.7 μH
- Tolerance : ±20%
- Maximum DC Current : 700mA
- Maximum Self Resonant Frequency : 25MHz
- Package/Case : 1206 (3216M)
- Maximum DC Resistance : 375mΩ
- Core Material : Ferrite
- Dimensions : 3.2 x 1.6 x 0.85mm
- Depth : 1.6mm
- Height : 0.85mm
- Length : 3.2mm
- Maximum Operating Temperature : +125°C
- Minimum Operating Temperature : -55°C
- CODE No.:786-7188
