63-5099-34 Murata LQM31P_00 Series 1 μH ±20% Ferrite Multilayer SMD Inductor, 1206 (3216M) Case, SRF: 60MHz 1.2A dc 150mΩ Rdc LQM31PN1R0M00L
Product Description
Product Model: 63-5099-34Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5099-34
Product Brand: Murata
Features

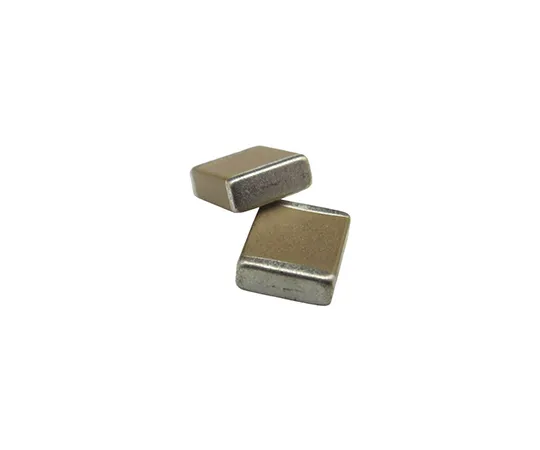

- Murata 1206 LQM31P_00 Series Magnetically Shielded Multilayer Chip Chokes. Wide inductance range, magnetically shielded Small size (3.2x1.6x1.8mm) for tight pitch mounting Low DC resistance and large current
Spec
- Quantity：1bag(10pieces)
- Series : LQM31P_00
- Inductance : 1 μH
- Tolerance : ±20%
- Maximum DC Current : 1.2A
- Maximum Self Resonant Frequency : 60MHz
- Package/Case : 1206 (3216M)
- Maximum DC Resistance : 150mΩ
- Core Material : Ferrite
- Dimensions : 3.2 x 1.6 x 0.85mm
- Depth : 1.6mm
- Height : 0.85mm
- Length : 3.2mm
- Maximum Operating Temperature : +125°C
- Minimum Operating Temperature : -55°C
- CODE No.:786-7162
