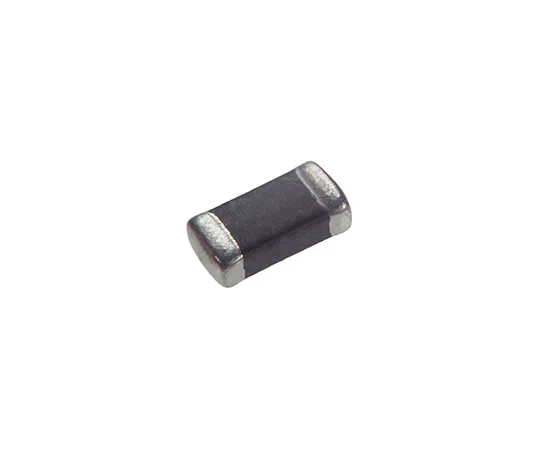

63-5099-32 Murata LQM2HP_GC Series 4.7 μH ±20% Ferrite Multilayer SMD Inductor, 1008 (2520M) Case, SRF: 25MHz 800mA dc 225mΩ Rdc LQM2HPN4R7MGCL
Product Description
Product Model: 63-5099-32Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5099-32
Product Brand: Murata
Features
- Murata 1008 LQM2HP_GC Series Magnetically Shielded Multilayer Chip Chokes. Surface mount inductors with ferrite core High curent rating Low DC resistance
Spec
- Quantity：1bag(10pieces)
- Series : LQM2HP_GC
- Inductance : 4.7 μH
- Tolerance : ±20%
- Maximum DC Current : 800mA
- Maximum Self Resonant Frequency : 25MHz
- Package/Case : 1008 (2520M)
- Maximum DC Resistance : 225mΩ
- Core Material : Ferrite
- Dimensions : 2.5 x 2 x 0.9mm
- Depth : 2mm
- Height : 0.9mm
- Length : 2.5mm
- Maximum Operating Temperature : +125°C
- Minimum Operating Temperature : -55°C
- CODE No.:786-7134
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

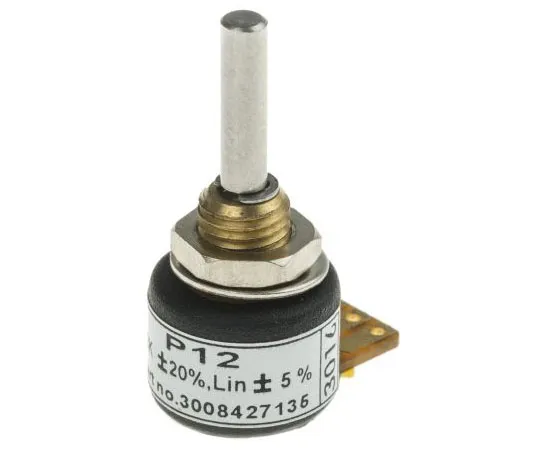

63-8039-10 RS Pro Conductive Plastic Wirewound Potentiometer with a 3.17 mm Dia. Shaft, 2kΩ, ±20%, 0.5W 173-0743
model: 63-8039-10
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-4970-79 Harting D-sub Series Metal D-sub Connector Backshell, 9 Way, Strain Relief 9670090344
model: 63-4970-79
brand: HARTING
Electronic/Electrical Parts and Controll Equipments
63-7323-93 Epic Contact Extraction Tool for EPIC Series Pin Contact, Contact size 1.5 → 2.5mm² 11171100
model: 63-7323-93
brand: Epic Contact
Electronic/Electrical Parts and Controll Equipments

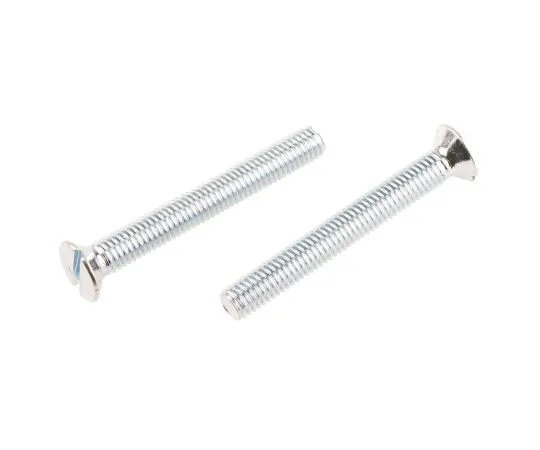

63-8072-77 RS Pro, M5 Countersunk Head, 40mm Steel Slot Bright Zinc Plated0.8 908-7429
