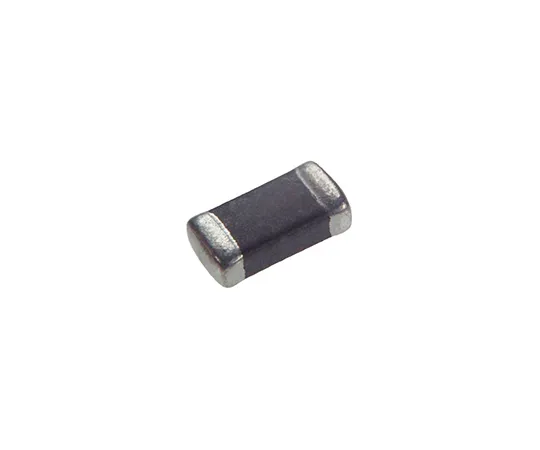

63-5099-28 Murata LQM2HP_G0 Series 2.2 μH ±20% Ferrite Multilayer SMD Inductor, 1008 (2520M) Case, SRF: 40MHz 1.3A dc 100mΩ Rdc LQM2HPN2R2MG0L
Product Description
Product Model: 63-5099-28Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5099-28
Product Brand: Murata
Features
- Murata 1008 LQM2HP_G0 Series Magnetically Shielded Multilayer Chip Chokes. Surface mount inductors with ferrite core High curent rating Low DC resistance
Spec
- Quantity：1bag(10pieces)
- Series : LQM2HP_G0
- Inductance : 2.2 μH
- Tolerance : ±20%
- Maximum DC Current : 1.3A
- Maximum Self Resonant Frequency : 40MHz
- Package/Case : 1008 (2520M)
- Maximum DC Resistance : 100mΩ
- Core Material : Ferrite
- Dimensions : 2.5 x 2 x 0.9mm
- Depth : 2mm
- Height : 0.9mm
- Length : 2.5mm
- Maximum Operating Temperature : +125°C
- Minimum Operating Temperature : -55°C
- CODE No.:786-7112
