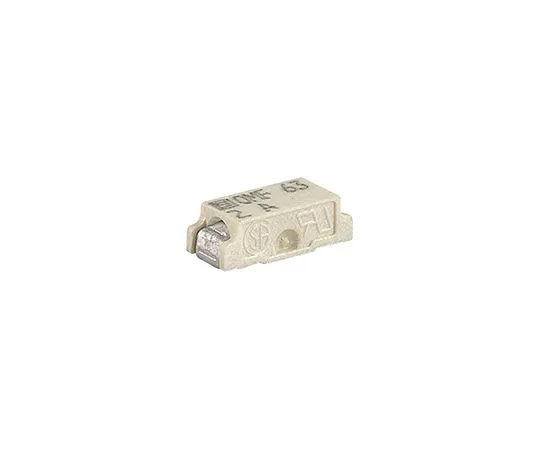

63-5096-11 Schurter 10A F Non-Resettable Surface Mount F***, 63V ac/dc 3402.0040.11
Product Description
Product Model: 63-5096-11Product Brand: Schurter Featur […]
Contact Us
Product Details
Product Model: 63-5096-11
Product Brand: Schurter
Features
- UL recognised component, CSA certified. Fast Acting Miniature F***s. Excellent I ;sup>2 ;/sup>t values Suitable for all SMD soldering processes F***holder type OHM63 (stock-no. ; 167-5194 167-5194 ) must be ordered separately
Spec
- Quantity：1bag(10pieces)
- Current Rating : 10A
- Voltage Rating : 63V ac/dc
- Length : 7.4mm
- Width : 3.1mm
- Height : 2.6mm
- Dimensions : 7.4 x 3.1 x 2.6mm
- F*** Speed : F
- Body Material : Thermoplastic
- Breaking Capacity at Maximum Voltage Rating : 50 A @ 63 V ac/dc
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +125°C
- Terminal Material : Tin Plated Copper Alloy
- Operating Temperature Range : -40 → +125 °C
- CODE No.:782-3721
