Features

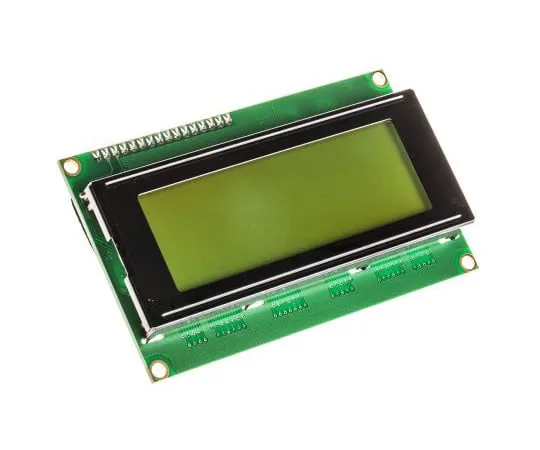

• Parallax 20 x 4 serial backlit mono LCD display. The Parallax Serial LCDs are very functional, low-cost liquid crystal displays that can be easily interfaced to and controlled by a microcontroller using a I/O pin. Code examples are included for the BASIC Stamp® and Propeller™ chip. The LCD displays provide basic text wrapping so that your text looks correct on the display. Full control over all of their advanced LCD features allows you to move the cursor anywhere on the display with a single instruction and turn the display on and off in any configuration. They support the same visible characters as the BASIC Stamp Editor's Debug Terminal (ASCII Dec 32-127). In addition, you may define up to eight of your own custom characters to display anywhere on the LCD. Clear 4 line x 20 character display Turn backlighting on or off with a single command Directly supports ASCII DEC characters 32-127 Eight ***r-definable custom characters Move the cursor anywhere on the display with a single command Baud mode selector and adjustable contrast on the back of the display Power requirement: +5Vdc, 20mA (light off), 80mA (light on) Selectable UART serial baud rates: 2400, 9600, 19200 Dimensions: 60.2 x 98.1mm Operating temp range: -20 to +70°C
