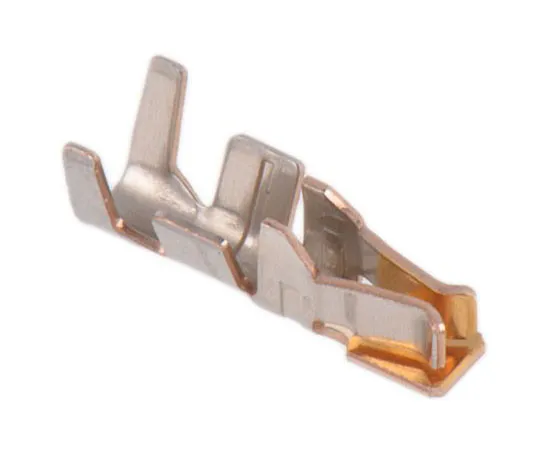

63-5093-34 Hirose DF11 Female Crimp Terminal Contact 22AWG DF11-22SCA DF11-22SCA
Product Description
Product Model: 63-5093-34Product Brand: Hirose Features […]
Contact Us
Product Details
Product Model: 63-5093-34
Product Brand: Hirose
Features
- Recomm***ed wire for DF11-22SCF/SC/SCFA/SCA is UL1061. Hirose DF11 Series Crimp Receptacle and Pin Contacts. A range of crimp contacts for *** in the DF11 series 2.00mm connector housings. The crimp receptacle contacts are for *** in the crimp connector housings. The crimp pin contacts are for *** in the in-line plug connector housings. These crimp contacts are available in wire size ranges of 30 to 22 AWG and with gold or tin plating.
Spec
- Quantity：1bag(5pieces)
- G***er : Female
- For Use With : DF11 Connector Housing
- Series : DF11
- Termination Method : Crimp
- Contact Plating : Gold
- Maximum Wire Size AWG : 22AWG
- Maximum Contact Resistance : 30mΩ
- Minimum Operating Temperature : -30°C
- Maximum Operating Temperature : +85°C
- CODE No.:779-3184
