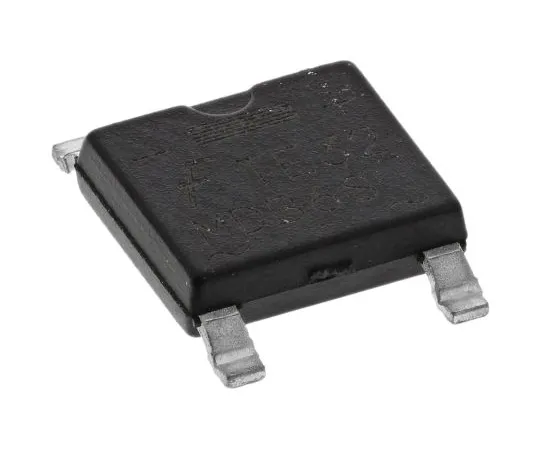

63-5088-34 ON Semiconductor MDB6S, Bridge Rectifier, 1A 600V, 4-Pin MicroDIP MDB6S
model:
63-5088-34
brand:
ON Semiconductor
Product Description
Product Model: 63-5088-34Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-5088-34
Product Brand: ON Semiconductor
Features
- UL, E352360. Bridge Rectifiers for PCB Surface Mount, MDBxS Series, Fairchild Semiconductor. Low Package Profile: 1.45mm (max.) Requires Only 35mm² of Board Space Ideal for Printed Circuit Board (PCB) reflow soldering
Spec
- Quantity：1bag(25pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 1A
- Peak Reverse Repetitive Voltage : 600V
- Mounting Type : Surface Mount
- Package Type : MicroDIP
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 30A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 1.1V
- Peak Reverse Current : 10µA
- Length : 4.55mm
- Width : 5.15mm
- CODE No.:772-9339
