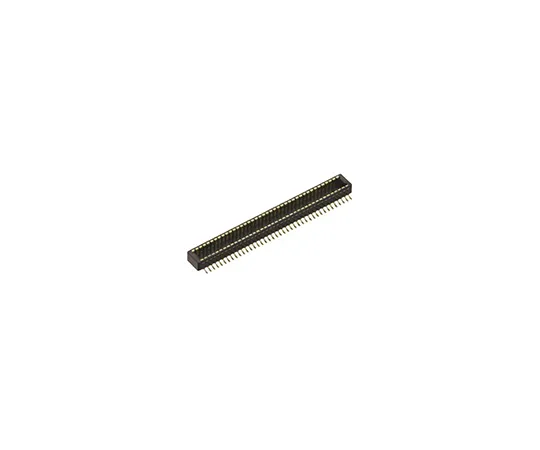

63-5087-82 Hirose DF40, 80 Way, 2 Row, Straight PCB Header DF40C-80DP-0.4V(58)
Product Description
Product Model: 63-5087-82Product Brand: Hirose Features […]
Contact Us
Product Details
Product Model: 63-5087-82
Product Brand: Hirose
Features
- For mating DF40 SMT Headers see stock number ; 772-6737 772-6737 typical. Hirose DF40 Series 0.4 mm Board to Board Connectors. DF40 Series 0.4 mm board to board and board to FPC header and socket connectors with a high density, low profile space saving design. The width of these connectors is a minimum of 3.38 mm but there is still sufficient space for a vacuum area for pick and place mounting. These DF40 Series connectors are available with a range of stack heights from 1.5 mm to 4.0 mm for high density mounting and design versatility. The contacts of these DF40 series connectors offer high contact reliability with an effective mating length of 0.45 mm on the lowest 1.5 mm stacking height. Nickel plated barriers protect the contact areas from solder wicking. These 0.4mm DF40 connectors feature a locking mechanism to prevent accidental unmating. Once mating is complete a tactile click is produced to provide mating assurance. Guide ribs on the connector enable the connector to self-align by 0.33 mm during mating. These DF40 connectors have a reinforced structure with shock absorbing ribs that **** protect against damage ca***d by impact or vibration. When mated the housing of these DF40 connectors covers the contacts protecting them from dust and debris and preventing shorting. The SMT leads are positioned close to the connector which also prevents contaminants from causing shorts on the exposed contacts. Features and Benefits. High density, low profile design Wide range of stack heights High contact reliability Nickel plated barriers to prevent solder wicking Locking mechanism with audible click for mating assurance Guide ribs allow self-alignment of 0.33 mm Reinforced structure with shock absorbing ribs Contamination resistant design. Application Specification. The 0.4mm DF40 Series board to board connectors with their high density design and reliable performance are ideal for *** in miniature devices. Applications include mobile phones, developer chip sets, LCD displays, Notebook PCs and keyboards
Spec
- Quantity:1bag(5pieces)
- Series : DF40
- Pitch : 0.4mm
- Number of Contacts : 80
- Number of Rows : 2
- Body Orientation : Straight
- Mounting Type : Surface Mount
- Termination Method : Solder
- Type : Board to Board, Board to FPC
- Voltage Rating : 30 V ac/dc
- CODE No.:772-6737
