Electronic/Electrical Parts and Controll Equipments

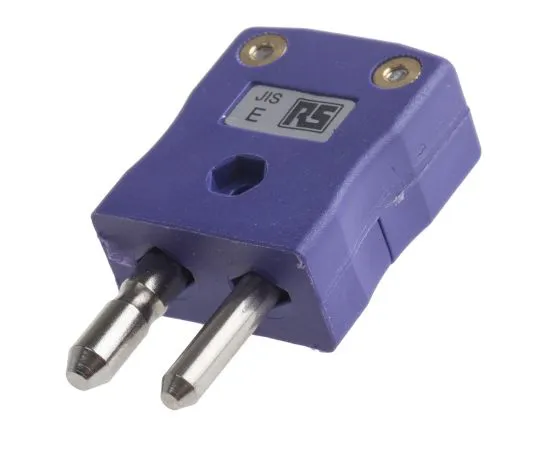

63-5086-84 RS PRO JIS Standard In-Line Plug Connector for *** with Type E Thermocouple Type E, Standard 771-8925
Product Description
Product Model: 63-5086-84Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5086-84
Product Brand: RS PRO
Features
- Standard In-Line Thermocouple Plugs. Standard in line connectors with solid, round plug pins available in thermocouple types K, J, T, E, N, R/S and B. These standard thermocouple plugs are suitable for many industrial applications. Contacts are polarised to prevent incorrect connection Colour coded in accordance with JIS specification Maximum continuous operating temperature 220 °C
Spec
- Quantity：1piece
- Accessory Type : Thermocouple Connector
- For Use With : Type E Thermocouple
- Standards Met : JIS
- Thermocouple Type : E
- Colour : Violet
- Connector Size : Standard
- Connector Type : In-Line
- Plug/Socket : Plug
- Minimum Temperature : -35°C
- Maximum Temperature : 220°C
- CODE No.:771-8925
