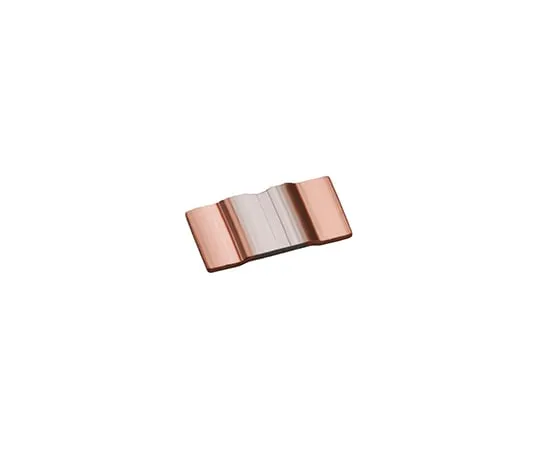

63-5086-59 2mΩ 1575 Metal Strip Surface Mount Fixed Resistor ±1% 5W - TLRS157550ER002FTDG TLRS157550ER002FTDG
model:
63-5086-59
brand:
TE Connectivity
Product Description
Product Model: 63-5086-59Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-5086-59
Product Brand: TE Connectivity
Features
- Low Ohmic SMD Shunt Resistor - TLRS Series. TLRS Series low ohmic SMD shunt resistors with heavy copper connectors electron beam welded to a Manganin or NiCr alloy element. TLRS resistors offers excellent long term stability and low inductance and can be mounted using re-flow soldering techniques or welding on copper. TLRS s can be ***d for current sensors in hybrid power sources, frequency converters and high current automotive applications. Available in two sizes - 1050 and 1575 (imp.) Up to 5W power ratings Max. soldering temps. of up to 350°C / 30 Secs. or 250°C / 10 Mins. Heavy Copper connectors
Spec
- Quantity：1piece
- Resistance : 2mΩ
- Technology : Metal Strip
- Package/Case : 1575
- Tolerance : ±1%
- Power Rating : 5W
- Temperature Coefficient : ±100ppm/°C
- Series : TLRS
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +170°C
- CODE No.:771-7887
