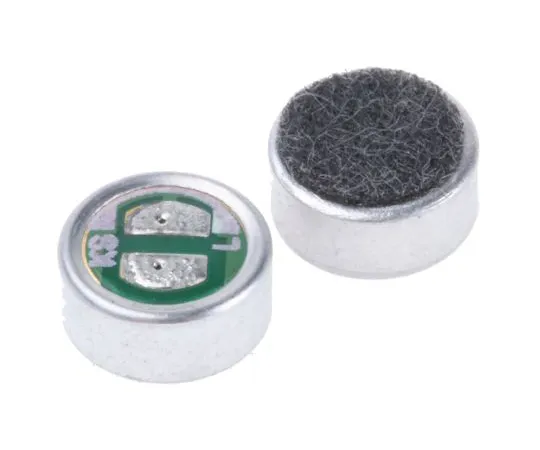

63-5086-43 RS PRO Omni-Directional 6mm Microphone Condenser, 20 → 20000 Hz -42dB 771-7020
Product Description
Product Model: 63-5086-43Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5086-43
Product Brand: RS PRO
Features
- Electret Microphone Inserts. Range of SMT and PCB mounting miniature electret condenser microphone inserts
Spec
- Quantity：1bag(5pieces)
- Sensitivity : -42dB
- Directivity : Omni-Directional
- Standard Operating Voltage : 2V dc
- Output Impedance : 2.2kΩ
- Signal to Noise Ratio : 60dB
- Maximum Supply Current : 0.5mA
- Dimensions : 6 x 2.7mm
- Diameter : 6mm
- Height : 2.7mm
- Maximum Frequency : 20kHz
- Minimum Frequency : 20Hz
- CODE No.:771-7020
