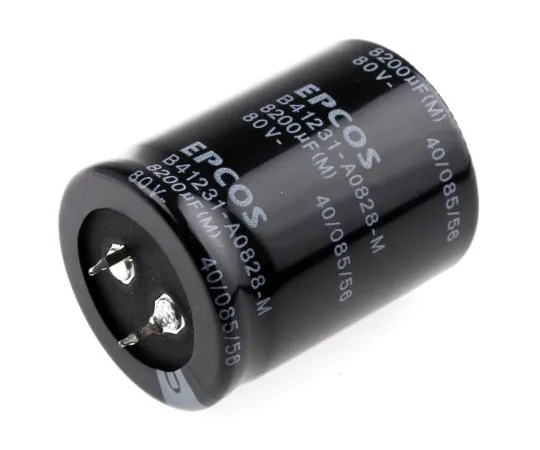

63-5086-19 EPCOS 8200μF 80V dc Aluminium Electrolytic Capacitor, Through Hole 35 (Dia.) x 45mm +85°C 35mm 10mm B41231A0828M000
Product Description
Product Model: 63-5086-19Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-5086-19
Product Brand: EPCOS
Features
- B41231 Series. Aluminium housing, fully insulated Snap-in, self-retaining solder terminals Negative pole labelling on the housing cover Negative pole not insulated from the housing Uniform pitch 10mm Operating temperature -40 to +85°C
Spec
- Quantity：1piece
- Capacitance : 8200µF
- Voltage : 80V dc
- Mounting Type : Through Hole
- Technology : Electrolytic
- Dimensions : 35 (Dia.) x 45mm
- Height : 45mm
- Minimum Operating Temperature : -40°C
- Diameter : 35mm
- Maximum Operating Temperature : +85°C
- Lifetime : 2000h
- Series : B41231
- Tolerance : ±20%
- CODE No.:771-4775
