63-5085-99 Amphenol FCI Mini-PV Female Crimp Terminal Contact 22AWG 47750-000LF 47750-000LF
Electronic/Electrical Parts and Controll Equipments

63-5085-99 Amphenol FCI Mini-PV Female Crimp Terminal Contact 22AWG 47750-000LF 47750-000LF

model: 63-5085-99
brand: Amphenol FCI

Product Description

Product Model: 63-5085-99Product Brand: Amphenol FCI Fe […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5085-99
Product Brand: Amphenol FCI

Features

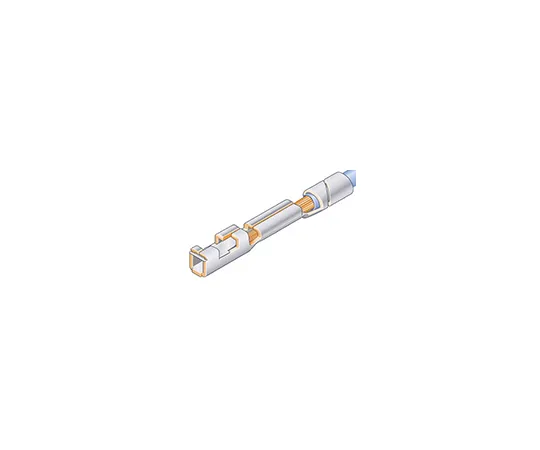

  • Amphenol FCI Mini-PV Series Crimp Receptacle Contacts. Mini-PV series crimp receptacle contacts for connecting discrete wire to a PCB. These PV receptacle contacts can be crimped to wire and ***d discretely or inserted into a MINI-LATCH crimp connector housing. These high reliability crimp receptacles are made from dual-metal enabling them to maintain contact pressure through 1000 mating cycles. The contact has a brass body which ensures a reliable gas tight crimp termination. A beryllium copper spring provides a high retention force at the mating interface. These PV series crimp receptacle contacts are available with three different spring pressures, ‘Standard ‘ (2.35N), 'High' (4.41N) and 'Ultra high' (10.79N). These differing spring pressures allow the customization of insertion and withdrawal forces. A wide range of wire sizes and plating options for each of these spring forces are also supported. Features and Benefits. Discrete wire connections or inserted into MINI-LATCH housings Durable dual metal construction supports 1000 mating cycles Brass body for gas tight crimp termination Retention spring for high mating force Three different spring pressures for customization Wide range of wire sizes and plating options. Product Application Information. The Mini-PV range of connectors are suitable for *** in wide range of applications across several markets. Applications include communications, instrumentation, industrial equipment, white goods, automotive electronics, data, medical, consumer and military and avionics.

Spec

  • Quantity:1bag(10pieces)
  • G***er : Female
  • For Use With : Mini-Latch Connector Housing
  • Series : Mini-PV
  • Termination Method : Crimp
  • Contact Plating : Tin
  • Maximum Wire Size AWG : 22AWG
  • Maximum Contact Resistance : 15MΩ
  • Minimum Operating Temperature : -65°C
  • Maximum Operating Temperature : +125°C
  • CODE No.:771-0139
