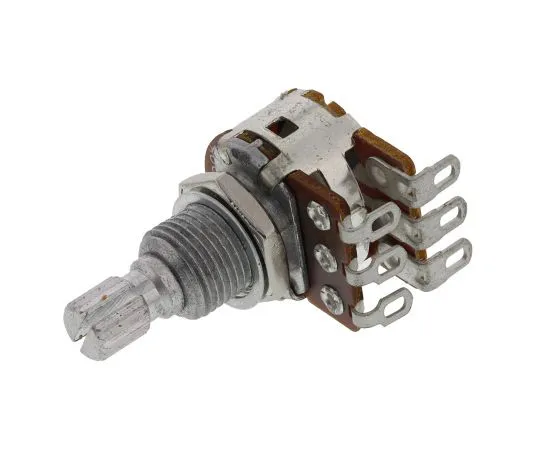

63-5085-09 Bourns 2 Gang Rotary Carbon Potentiometer with a 6 mm Dia. Shaft, 500kΩ, ±20%, 0.06W, Audio PDB182-GTRB1-504MN PDB182-GTRB1-504MN
Product Description
Product Model: 63-5085-09Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-5085-09
Product Brand: Bourns
Features
- 17 mm Bl***-Balance Guitar Potentiometer - PDB182-GTRB. Bourns PDB182-GTRB series dual gang, 17 mm bl***-balance "guitar pots". The PDB182-GTRB series potentiometers are available in a two resistance values and with a centre detent as standard. Carbon element Knurled shaft Metal bushing/metal shaft Rear solder lugs 250K and 500K standard resistance values Standard M and N taper
Spec
- Quantity：1piece
- Potentiometer Type : Rotary
- Maximum Resistance : 500kΩ
- Number of Gangs : 2
- Number of Turns : 1
- Power Rating : 0.06W
- Electrical Taper : Audio
- Element Material : Carbon
- Mounting Type : Panel Mount
- Termination Style : Solder Lug
- Shaft Length : 19mm
- Shaft Diameter : 6 mm
- Tolerance : ±20%
- Series : PDB182-GTRB
- CODE No.:770-3071
