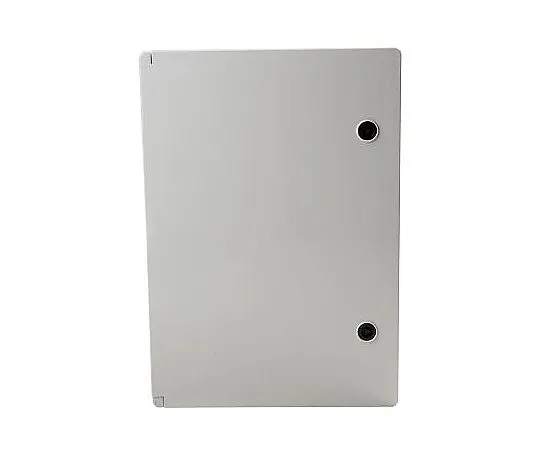

63-5084-55 RS PRO ABS Wall Box, IP65, 195mm x 500 mm x 350 mm 769-6128
Electronic/Electrical Parts and Controll Equipments

63-5084-55 RS PRO ABS Wall Box, IP65, 195mm x 500 mm x 350 mm 769-6128

model: 63-5084-55
brand: RS PRO

Product Description

Product Model: 63-5084-55Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5084-55
Product Brand: RS PRO

Features

  • RS Pro IP65 ABS Wall Boxes. From RS Pro, a range of lockable ABS wall mounted enclosures. Rated at IP65, the level of protection provided by these boxes ensures the contents will be safely stored and protected. The door of the enclosure has a pull out hinge which allows it to be removed for easy access and due to the protection benefit, these wall boxes are suitable for various applications. All models are highly reliable and excellent quality. Features and Benefits. Material: ABS Plastic IP65 rating Lockable 200° door opening Easy to ***, including removal of the door. Benefits of ABS. ABS will give the wallbox a smooth, high floss finish, accompanied by excellent insulation properties. One of the key features of ABS would be its great resistance to chemical corrosion. Although not completely impervious, an ABS enclosure would withstand chemicals and other harmful liquids up to a better standard than metal. How much protection can these wall mount boxes provide?. This entire range of boxes are rated at IP65. All models are completely protected against any dust which may harm sensitive equipment, so no dirt or small particles will be able to enter the enclosure whilst sealed. The excellent protection rating also ensures great water resistance and sufficiency from low pressure jets of water. If using this enclosure as a storage box, what is supplied?. Each steel wall box comes standard with a screw mounted back plate. Also included are fixing brackets for simple and efficient wall mounting. It is recomm***ed to inspect the surface before hand, to ensure it will be able to hold both a plastic box and its contents. What is a wall box?. Wall boxes are a type of enclosure which can be mounted to a wall, by brackets or into panel cut outs as an example. These types of boxes are ***d in various applications for storage of items or sensitive electrical equipment like wiring or circuit boards. The boxes have various ways of being covered, such as locking, screwed or simple latches. Regardless of the need, there will be the right RS Pro wall box at competitive prices to suit the requirements.

Spec

  • Quantity:1piece
  • External Height : 500 mm
  • External Width : 350 mm
  • External Depth : 195mm
  • Body Material : ABS
  • Transparent Door : No
  • IP Rating : IP65
  • Chassis Plate : Yes
  • Door Lock Type : Single Lock System
  • Gland Plate : No
  • Colour : Grey
  • Fixing Kit : Yes
  • Standards Met : RoHS Compliant
  • CODE No.:769-6128
