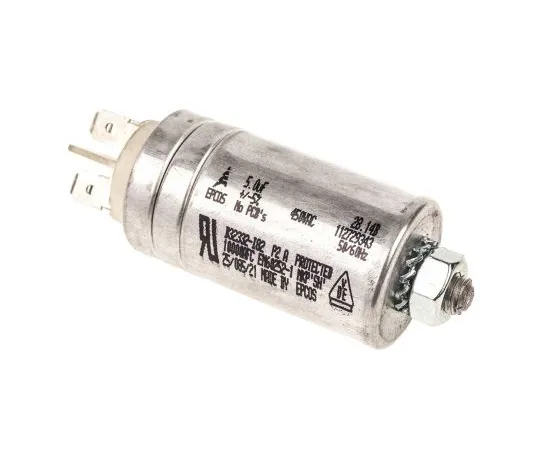

63-5084-41 Epcos 5μF Polypropylene Capacitor PP 450V ac ±5% Tolerance Stud Mount B32332 Series B32332I6505J082
Product Description
Product Model: 63-5084-41Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-5084-41
Product Brand: EPCOS
Features
- IEC 60252-1 2001-02, EN 60252 2001, UL 810. B32332 Series Polypropylene Film Capacitors. The B32332 series of film capacitors from EPCOS are constructed from metallised polypropylene film encapsulated in an aluminium can with plastic cap. Featuring a low dissipation factor and excellent self-healing properties, these film capacitors provide high insulation resistance and an overpressure disconnection device. B32332 film capacitors are ideal for sine wave applications and motor run applications. Double fast on terminals Rated for continuous service Option threaded studs are
Spec
- Quantity：1piece
- Capacitance : 5µF
- Voltage : 450V ac
- Mounting Type : Stud Mount
- Tolerance : ±5%
- Series : B32332
- Height : 52mm
- Dimensions : 30 (Dia.) x 52mm
- Dielectric : PP
- Terminal Type : Stud Mount
- CODE No.:769-4261
