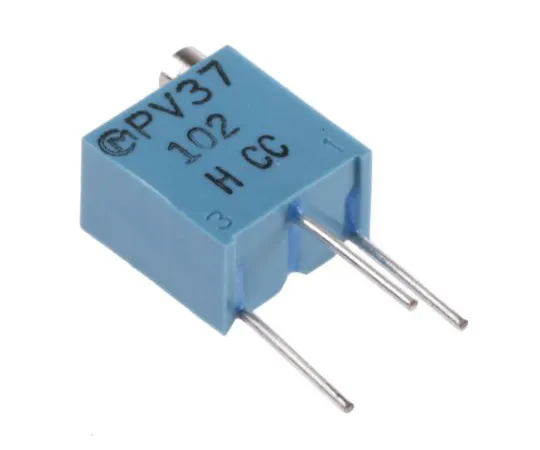

63-5084-08 1kΩ Through Hole Trimmer Potentiometer 0.25W Top Adjust Bourns PV37 Series PV37W102C01B00
Electronic/Electrical Parts and Controll Equipments

63-5084-08 1kΩ Through Hole Trimmer Potentiometer 0.25W Top Adjust Bourns PV37 Series PV37W102C01B00

model: 63-5084-08
brand: Bourns

Product Description

Product Model: 63-5084-08Product Brand: Bourns Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5084-08
Product Brand: Bourns

Features

  • PV37 Series Lead Sealed Type Multi-Turn Trimmer Potentiometers. PV37 series multi-turn trimmer potentiometers with a 12 turn adjustment and a lead sealed construction to protect against dust and liquid. These PV37 multi-turn trimmer potentiometers have a clutch mechanism the prevents excessive wiper rotation, top and side adjustment directions and are available for ultrasonic cleaning after soldering. For details of the different PCB footprints for these PV37 trimmer potentiometers please refer to datasheet. Typical applications for these multi-turn trimmer potentiometers include measuring instruments, OA equipment, medical equipment, power supplies and base stations for cell phones. Slim body profile - higher packing density Sealed to withstand immersion board washing Flame retardant plastic housing Top adjustment screw

Spec

  • Quantity:1piece
  • Maximum Resistance : 1kΩ
  • Mounting Type : Through Hole
  • Number of Turns : 12
  • Orientation : Top Adjust
  • Power Rating : 0.25W
  • Series : PV37
  • Termination Style : Solder Pin
  • Tolerance : ±10%
  • Temperature Coefficient : ±150ppm/°C
  • Length : 6.4mm
  • Minimum Operating Temperature : -55°C
  • Maximum Operating Temperature : +125°C
  • CODE No.:769-2227
