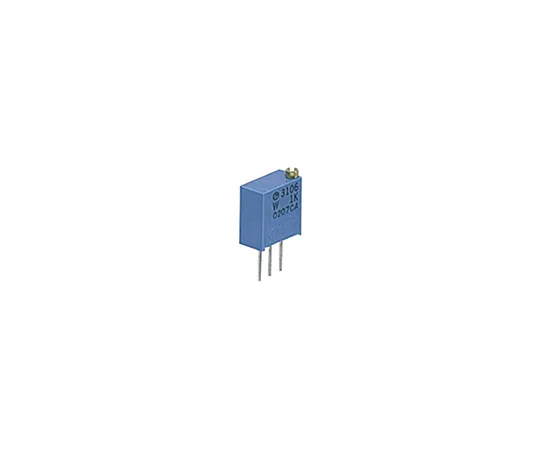

63-5084-01 200kΩ Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns PV36 Series PV36W204C01B00
Product Description
Product Model: 63-5084-01Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-5084-01
Product Brand: Bourns
Features
- 25-Turn 500mW Sealed 10mm PV36W Series. High resolution 25 turn Top adjustment screw Sealed to protect against dust and liquid Flame retardant 10mm square plastic housing
Spec
- Quantity：1piece
- Maximum Resistance : 200kΩ
- Mounting Type : Through Hole
- Number of Turns : 25
- Orientation : Top Adjust
- Power Rating : 0.5W
- Series : PV36
- Termination Style : Solder Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Length : 9.6mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- CODE No.:769-2189
