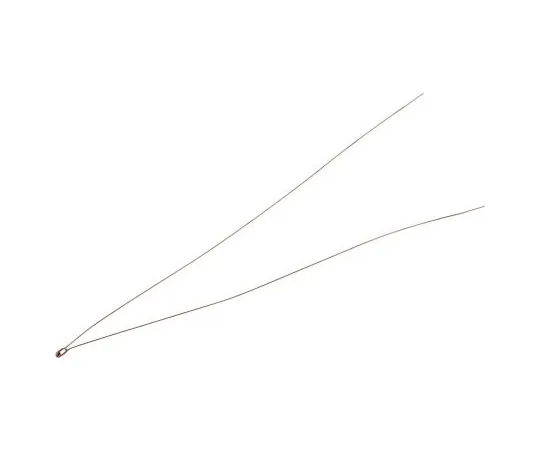

63-5083-90 EPCOS B57550G1104F000 Thermistor 100kΩ, 1.3 (Dia.) x 2.2mm B57550G1104F000
Product Description
Product Model: 63-5083-90Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-5083-90
Product Brand: EPCOS
Features
- Beta values shown are for the temperature range 0-100°C. Epcos Glass-Encapsulated Temperature Sensor. From Epocs, the B57550G1 Series of NTC thermistors boast a highly stable and heat resistive glass encapsulated construction. Featuring a very fast response time, B57550G1 Series NTC thermistors are able to measure temperatures up to 300°C.
Spec
- Quantity：1bag(5pieces)
- Temperature Coefficient Type : NTC
- Thermal Time Constant : 7s
- Resistance @ 25 °C : 100kΩ
- Tolerance : ±1%
- Application : Temperature Measurement
- Maximum Power Rating : 32mW
- Height : 2.2mm
- Dimensions : 1.3 (Dia.) x 2.2mm
- Maximum Operating Temperature : +300°C
- CODE No.:769-1934
