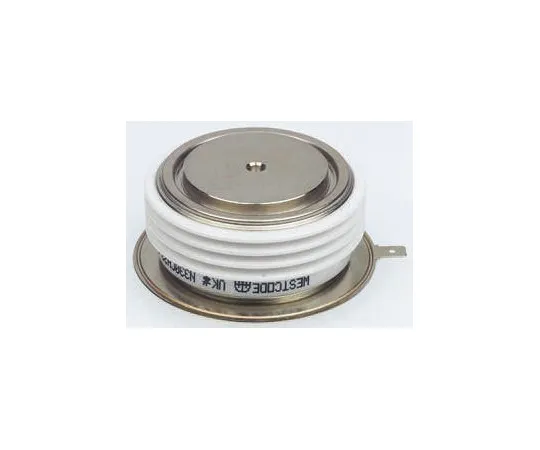

63-5083-35 IXYS, N1718NC180, Thyristor, 2000V 1718A, 300mA 2-Pin, N1718 N1718NC180
Product Description
Product Model: 63-5083-35Product Brand: IXYS Features P […]
Contact Us
Product Details
Product Model: 63-5083-35
Product Brand: IXYS
Features
- Phase Control Capsule Thyristors, IXYS. A range of standard phase control thyristors from IXYS Westcode. These rugged devices are available in ratings of up to 2000V and over 900A, and are ho***d in industry-standard capsule packages. Typical applications include industrial DC drives, induction heating control, marine/rail propulsion systems, wind power converters, electrochemical power supplies and soft starters.
Spec
- Quantity：1piece
- Rated Average On-State Current : 1718A
- Thyristor Type : PCT
- Package Type : N1718
- Repetitive Peak Reverse Voltage : 2000V
- Surge Current Rating : 27200A
- Mounting Type : Stud
- Maximum Gate Trigger Current : 300mA
- Maximum Gate Trigger Voltage : 3V
- Maximum Holding Current : 1000mA
- Pin Count : 2
- Height : 27.7mm
- Dimensions : 74 (Dia.) x 27.7mm
- Repetitive Peak Forward Blocking Voltage : 2000V
- CODE No.:768-9026
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4874-36 RS Straight 50Ω Cable Mount BNC Connector, Plug, Nickel, Crimp Termination, RG179/U 546-3737
model: 63-4874-36
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-7580-28 STW20NK50Z N-Channel MOSFET, 17 A, 500 V MDmesh, SuperMESH, 3-Pin TO-247 STMicroelectronics STW20NK50Z
model: 63-7580-28
brand: STMicroelectronics
Electronic/Electrical Parts and Controll Equipments

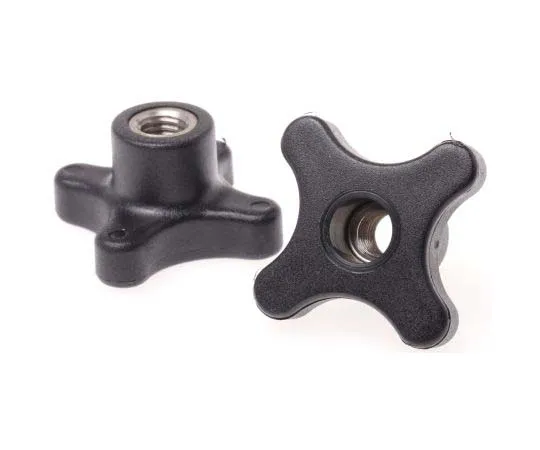

63-7715-44 RS PRO Black Thermoplastic Knob, M10 x 15 702-7765
